IRWIN 26376 Machine Screw Fractional Metric Tap and Hex Die Set, 76 Pieces
IRWIN 26376 Machine Screw Fractional Metric Tap and Hex Die Set, 76 Pieces
- The Irwin Hanson 76-Piece Fractional/ Metric Tap and Die Set 26376 is a set of taps and dies that are made from high carbon steel and come in a durable plastic portable case. The set contains a wide assortment of taps, dies, and accessories.
- Description
- Type: Machine Screw, Fractional, Metric, Plug Tap, Hex Die
- Tap Sizes: #4-40 TPI NC, #6-32 TPI NC, #8-32 TPI NC, #10-24 TPI NC, #10-32 TPI NF, #12-24 TPI NC, 1/4 Inch-20 TPI NC, 1/4 Inch-28 TPI NF, 5/16 Inch-18 TPI NC, 5/16 Inch-24 TPI NF, 3/8 Inch-16 TPI NC, 3/8 Inch-24 TPI NF, 7/16 Inch-14 TPI NC, 7/16 Inch-20 TPI NF, 1/2 Inch-13 TPI NC, 1/2 Inch-20 TPI NF, 3 mm-0.5 Pitch, 4 mm-0.7 Pitch, 4 mm-0.75 Pitch, 5 mm-0.8 Pitch, 5 mm-0.9 Pitch, 6 mm-1 Pitch, 7 mm-1 Pitch, 8 mm-1 Pitch, 8 mm-1.25 Pitch, 9 mm-1 Pitch, 9 mm-1.25 Pitch, 10 mm-1.25 Pitch, 10 mm-1.5 Pitch, 11 mm-1.5 Pitch, 12 mm-1.5 Pitch, 12 mm-1.75 Pitch, 1/8 Inch-27 Threaded, 1/8 Inch-28 BSP
- Tap Thread Type: NC, NF, NPT, BSP
- Number of Taps: 34
- Die Sizes: #4-40 TPI NC, #6-32 TPI NC, #8-32 TPI NC, #10-24 TPI NC, #10-32 TPI NF, #12-24 TPI NC, 1/4 Inch-20 TPI NC, 1/4 Inch-28 TPI NF, 5/16 Inch-18 TPI NC, 5/16 Inch-24 TPI NF, 3/8 Inch-16 TPI NC, 3/8 Inch-24 TPI NF, 7/16 Inch-14 TPI NC, 7/16 Inch-20 TPI NF, 1/2 Inch-13 TPI NC, 1/2 Inch-20 TPI NF, 3 mm-0.5 Pitch, 4 mm-0.7 Pitch, 4 mm-0.75 Pitch, 5 mm-0.8 Pitch, 5 mm-0.9 Pitch, 6 mm-1 Pitch, 7 mm-1 Pitch, 8 mm-1 Pitch, 8 mm-1.25 Pitch, 9 mm-1 Pitch, 9 mm-1.25 Pitch, 10 mm-1.25 Pitch, 10 mm-1.5 Pitch, 11 mm-1.5 Pitch, 12 mm-1.5 Pitch, 12 mm-1.75 Pitch, 1/8 Inch-27 Threaded, 1/8 Inch-28 BSP
- Die Thread Type: NC, NF, NPT, BSP
- Number of Dies: 34

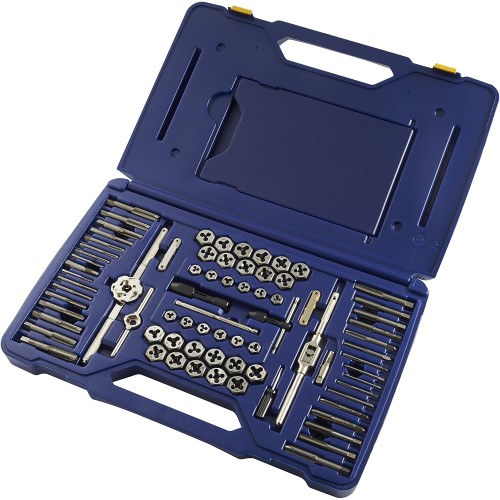

- Set Contents: (32) Plug Tap, (12) 5/8 Inch Hexagon Die, (20) 1 Inch Hexagon Die, (2) Pipe Tap, (2) Pipe Die, (1) 5/8 Inch Plain Hexagon Die Stock, (1) 1 Inch Adjustable Die Stock, (1) 0 to 1/2 Inch Adjustable Handle Tap Wrench, (1) 1/4 to 1/2 Inch 2-In-1 Tap Wrench, (1) 0 to 1/4 Inch T-Handle Wrench, (1) 16 Leaf Metric Thread Pitch Gauge, (1) 18 Leaf Standard Thread Pitch Gauge, (1) Empty Plastic Case
- Specifications
- Total Number of Pieces: 76
- Tap Material: High Carbon Steel
- Die Material: High Carbon Steel
- Packing Type: Plastic Case
- UPC 425262637670
