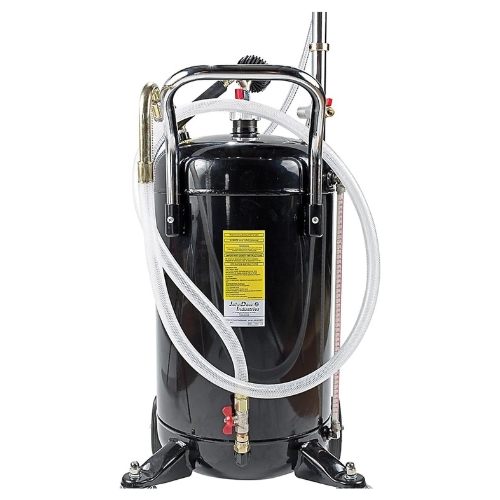

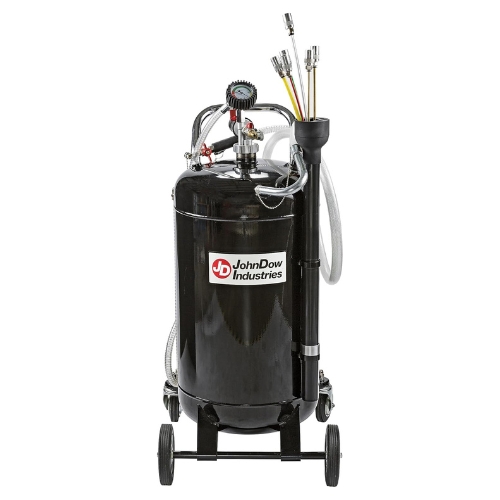

John Dow Industries JDI-20EV Fluid Evacuator, Steel, 20 Gallon Tank with 7-Ft Suction Hose & Vacuum Gauge
John Dow Industries JDI-20EV Fluid Evacuator, Steel, 20 Gallon Tank with 7-Ft Suction Hose & Vacuum Gauge
- The John Dow JDI-20EV Fluid Evacuator is a steel-tank unit capable of removing used oil and non-flammable automotive fluids where conventional draining isn’t practical. It features a 20 gallon capacity, powerful venturi vacuum system, 7-foot suction hose, six suction probes, three OE-style adapters, and oil-/chemical-resistant wheels.

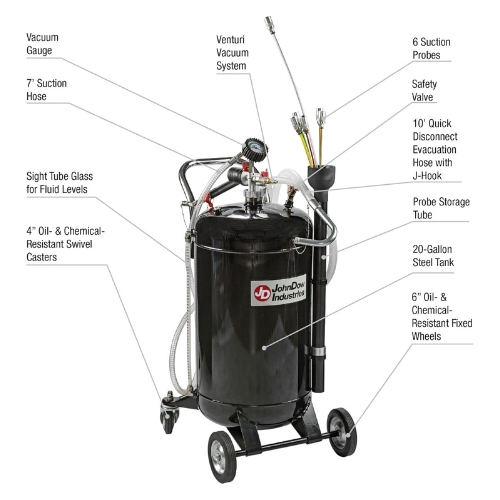

- Features:
- 20 gallon steel tank for large fluid evacuation operations.
- Venturi vacuum system driven by shop air to create suction without electric motor.

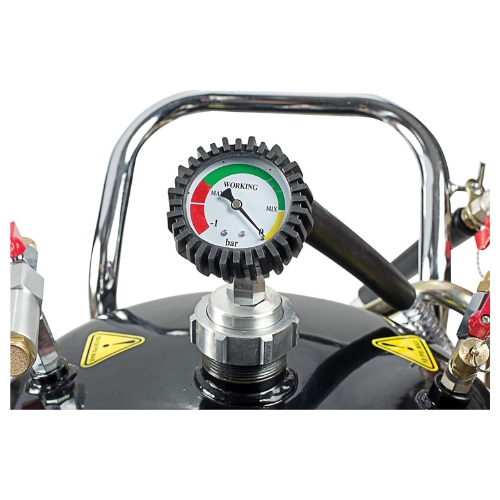

- Clear vacuum gauge to monitor suction level.

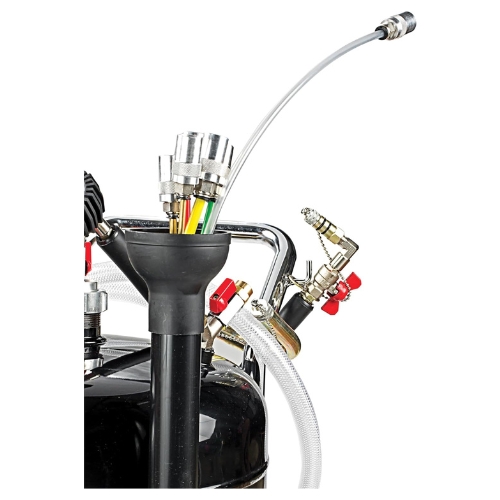

- 7-foot suction hose plus six probes and three OE-style adapters for multiple fluid extraction points.
- Sight tube to view fluid level and durable, oil-/chemical-resistant wheels and casters for mobility.
- Specifications:
- Manufacturer: John Dow Industries
- Part Number / Model: JDI-20EV
- Material: Steel
- Tank Capacity: 20 gallons
- Suction Capacity: approx. 14 gallons
- Air Pressure Required for Vacuum: 110-115 psi
- Depressurization Time: 120-150 seconds
- Hose Length: 7 feet suction hose

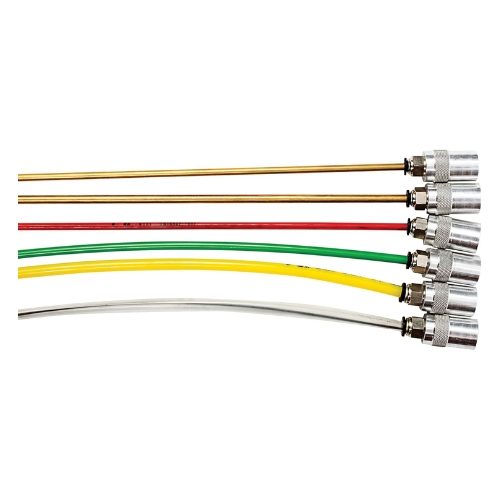

- Included Probes: six suction probes and three OE-style adapters
- Wheel / Caster Configuration: front 4-inch swivel casters and rear 7-inch fixed wheels
- System/Application: Fluid evac system for automotive service shops, used oil recovery, coolant or transmission fluid extraction where gravity drain is impractical
- The John Dow JDI-20EV may also be called 20-gal steel fluid evacuator, shop air fluid vac, OE probe fluid extractor, used oil fluid evacuator JDI-20EV, and portable vacuum evacuator tank.
The John Dow JDI-20EV Steel Fluid Evacuator gives technicians strong, reliable evacuation of used fluids with versatile probes, substantial capacity, and maneuverability for frequent service use.
Q: What air pressure does the JDI-20EV need to operate?
A: It requires shop air supply in the range of 110-115 psi to generate the venturi vacuum needed.
Q: How many probes and adapters come with it?
A: It includes six suction probes and three OE-style adapters for extracting fluid from various engine ports and components.
Q: What wheel configuration does it have?
A: It uses front 4-inch swivel casters with rear 7-inch fixed wheels for mobility.
