John Dow Industries JDI-6EV Fluid Evacuator, Steel, 6 Gallon Capacity with Vacuum Gauge & Suction Hose
John Dow Industries JDI-6EV Fluid Evacuator, Steel, 6 Gallon Capacity with Vacuum Gauge & Suction Hose

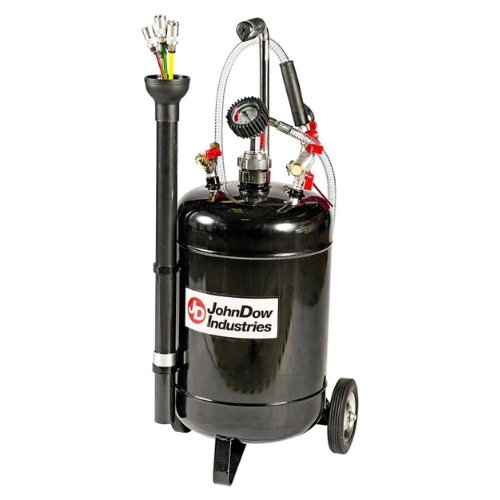

- The John Dow JDI-6EV Steel Fluid Evacuator is designed for removing used motor oil and other non-flammable fluids from vehicles when traditional drain pans are not practical. It features a venturi vacuum system powered by compressed air, a 7 foot suction hose, multiple suction probes and adapters, and a quick-disconnect evacuation hose for clean self-emptying.

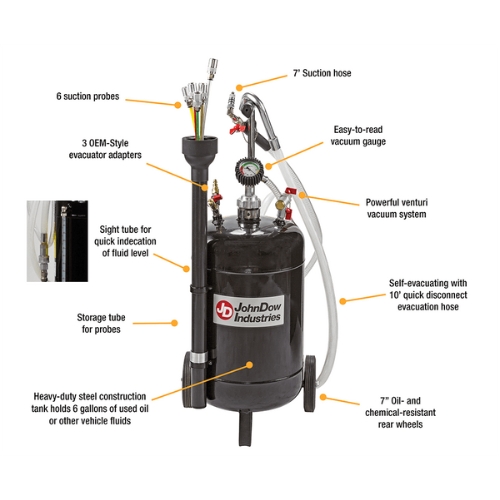

- Features:
- 6 gallon heavy-duty steel tank for compact service jobs.

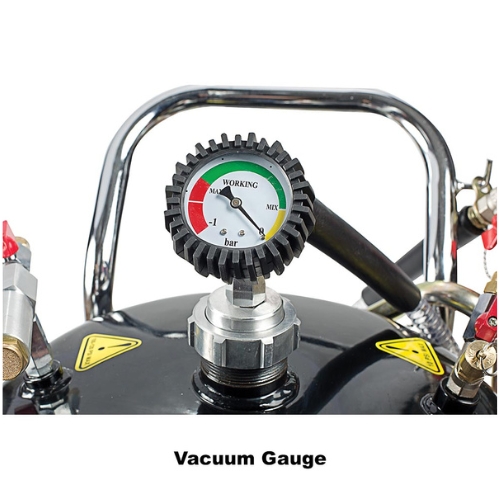

- Venturi vacuum system with built-in vacuum gauge for monitoring suction pressure.
- 7 foot suction hose with six suction probes and three OE-style adapters.
- Sight tube to check fluid level easily and a 10 foot quick-disconnect evacuation hose for discharge.

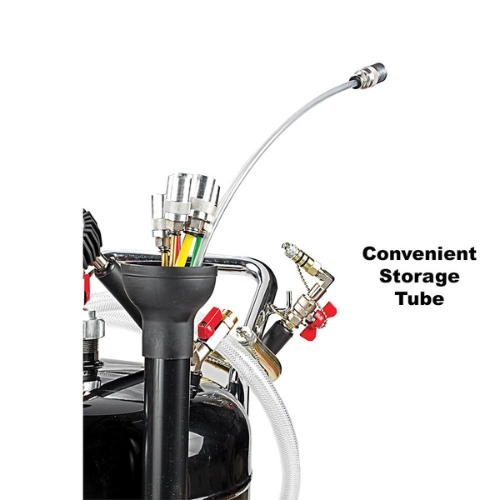

- Oil- and chemical-resistant rear wheels with probe storage tube for accessories.
- Specifications:
- Manufacturer: John Dow Industries
- Model / SKU: JDI-6EV
- Material: Steel
- Tank Capacity: 6 gallons
- Suction Capacity: approx. 4 gallons
- Air Pressure Requirement: 110-115 PSI
- Dimensions (H x W x D): 35 x 16 x 15 inches

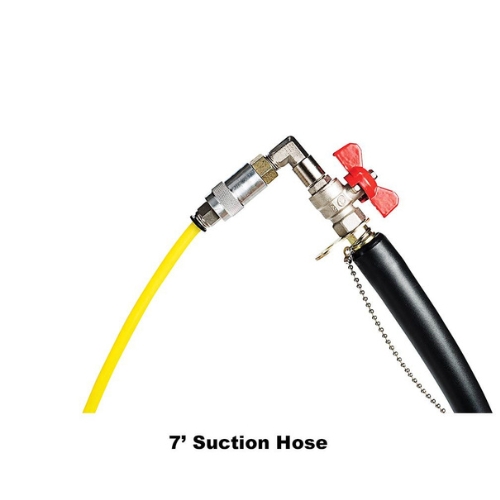

- Hose Length: 7 feet suction hose
- Includes: Six suction probes, three OE-style adapters, vacuum gauge, sight tube, quick-disconnect evacuation hose, probe storage tube
- System/Application: Designed for fluid extraction of oil, coolant, and other non-flammable fluids in automotive service where gravity drain is not practical
- The John Dow JDI-6EV may also be called 6 gallon fluid evacuator, steel venturi evacuator, portable oil extractor, shop fluid removal system, and JDI-6EV suction tank.
The John Dow JDI-6EV Steel Fluid Evacuator provides compact yet effective fluid removal for service shops, combining versatile probe options, vacuum gauge monitoring, and simple self-evacuation for clean operation.
Q: What air pressure does the JDI-6EV require?
A: It operates with shop air at 110-115 PSI to create vacuum suction.
Q: What probes and adapters are included?
A: It comes with six suction probes and three OE-style adapters for multiple fluid extraction applications.
Q: How is fluid discharged after filling?
A: It uses a 10 foot quick-disconnect evacuation hose with shop air for self-evacuation into a waste oil storage tank.
