John Dow Industries JDI-LP5 Oil Drain, Steel, 25 Gallon Capacity with Electric Pump Evacuation, 48" x 25" x 10"

John Dow Industries JDI-LP5 Oil Drain, Steel, 25 Gallon Capacity with Electric Pump Evacuation, 48" x 25" x 10"

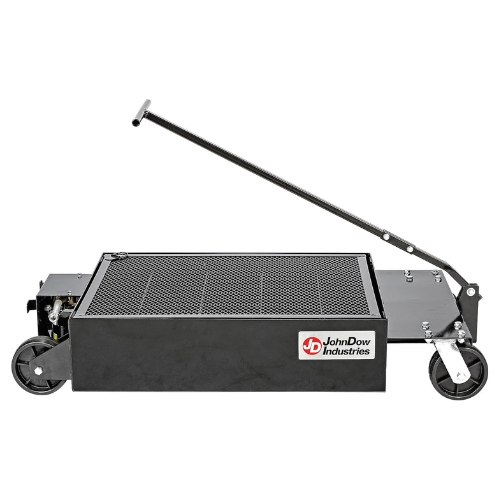

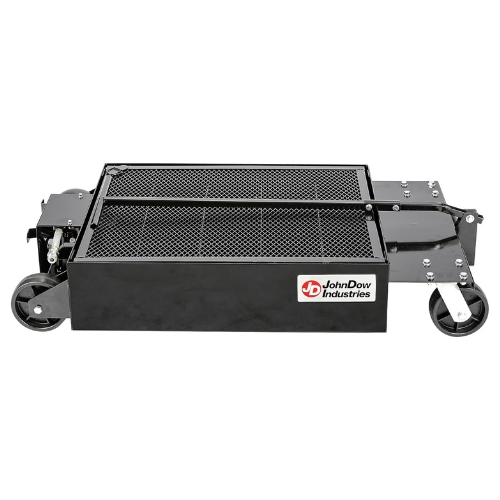

• The John Dow JDI-LP5 Steel 25 Gallon Low-Profile Oil Drain is built with rugged steel construction and includes a self-contained 110V electric pump for easy evacuation. It has a 10-inch ground clearance, quick-disconnect discharge hose, and foldable T-handle for positioning under large vehicles.

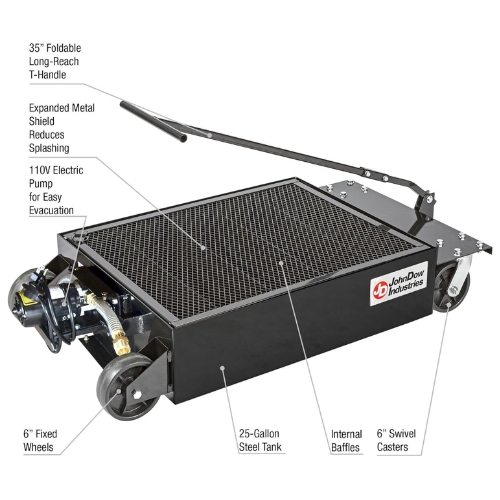

• Features:
  • 25 gallon steel tank serves heavy-duty shops requiring large fluid capacity.

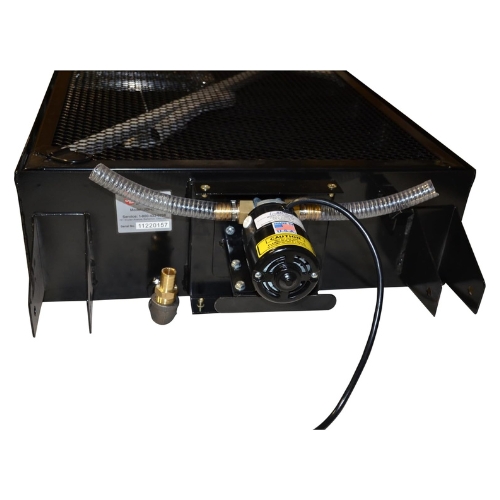

  • 110V electric evacuation pump transfers oil efficiently via a quick-disconnect hose.
  • Low profile (? 10-inch height) clearance for fitting under trucks and large equipment.

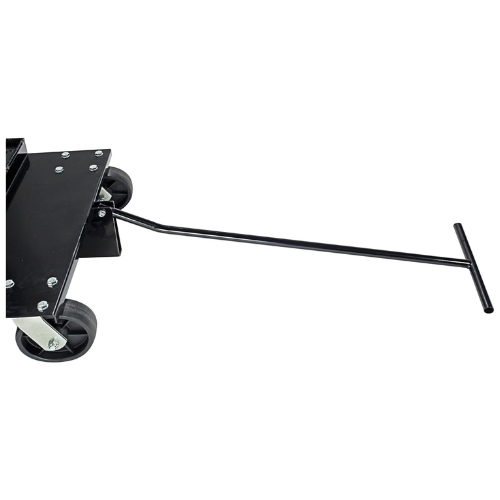

  • Long reach 35-inch T-handle that folds for storage.
  • Expanded metal shield to reduce splash; 6-inch industrial casters for mobility.
• Specifications:
  • Manufacturer: John Dow Industries
  • Model / SKU: JDI-LP5
  • Material: Steel
  • Capacity: 25 gallons
  • Ground Clearance: 10 inches
  • Hose: Quick-disconnect evacuation hose
  • Handle: 35-inch foldable T-handle
  • Size (L x W x H): 48 x 25 x 10 inches

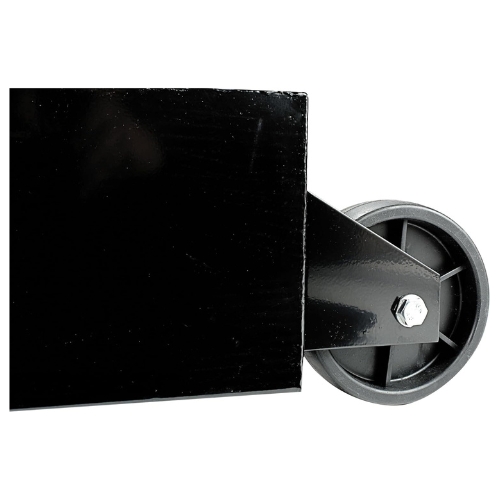

  • Wheel Configuration: 6-inch industrial casters
  • Application: Low-profile oil drain for heavy-duty vehicles with self-evacuation capability using electric pump
• The John Dow JDI-LP5 may also be called 25 Gallon Low-Profile Oil Drain with Pump, Electric Evacuation Steel Drain, LP5 Oil Drain, John Dow Crew Chief LP5, and Low Clearance Oil Drain 25 Gal.

The John Dow JDI-LP5 Steel Low-Profile Oil Drain combines high capacity, low clearance, and electric evacuation to streamline large-volume oil changes-ideal for trucks, heavy equipment, and fleet service work.

Q: What voltage is the evacuation pump?
A: The pump operates on 110V electric power.
