K-Tool International 63197 Air Hydraulic Truck Jack, 22 Ton Capacity, Lift Range 8 2/3 to 13 1/2 Inches, 100 to 120 psi Shop Air
K-Tool International 63197 Air Hydraulic Truck Jack, 22 Ton Capacity, Lift Range 8 2/3 to 13 1/2 Inches, 100 to 120 psi Shop Air

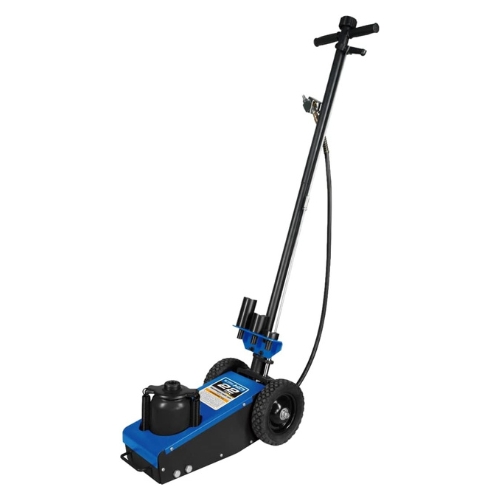

- K-Tool International KTI63197 is a 22 ton air hydraulic truck jack designed for lifting heavy-duty vehicles at approved lift points. It uses shop air at 100 to 120 psi and delivers a low profile with a lift range from 8 2/3 to 13 1/2 inches for axle service.
- Features:
- 22 ton rated capacity supports buses and heavy trucks for axle and suspension work, reducing lifts per job.
- Lift range 8 2/3 to 13 1/2 inches fits many low-clearance axles while reaching service height without cribbing.
- Shop air requirement 100 to 120 psi integrates with common garage compressors for faster, controlled lifts.
- Ram wiper seal helps keep contaminants out of the hydraulic system to extend service life.
- Welded pump construction enhances durability under frequent professional use.
- Standalone lifting device; not a replacement part and intended for use with appropriate jack stands at manufacturer-approved lift points.
- Specifications:
- Manufacturer: K-Tool International
- Part Number: KTI63197
- Type: Air hydraulic truck jack
- Capacity: 22 ton (44,000 lb)
- Lift Range: 8 2/3 to 13 1/2 inches
- Ram Travel: 4 7/8 inches
- Extension Screw Adjustment: 4 inches
- Air Supply: 100 to 120 psi
- Standards: Complies with ASME PASE 2014
- Application: Heavy-duty vehicle axle lifting using shop air; general service use, not a replacement part
- The K-Tool International KTI63197 air hydraulic truck jack can also be referred to as air hydraulic truck jack, 22 ton air jack, pneumatic axle jack, heavy duty truck jack, and shop air jack.
K-Tool International provides professional automotive service tools and lifting equipment for shops and fleets, including air hydraulic truck jacks that meet industry safety standards for reliable performance in demanding service environments.
Q: What air supply do I need to operate this jack?
A: An air supply of 100 to 120 psi is required for proper operation and lifting performance.
Q: What are the minimum and maximum lift heights?
A: The lift range is 8 2/3 to 13 1/2 inches, with 4 7/8 inches of ram travel and a 4 inch extension screw adjustment.
Q: Is this a replacement part for another jack or model?
A: No. KTI63197 is a standalone air hydraulic truck jack intended for general heavy-duty vehicle service. Use approved jack stands to support the load after lifting.
