K-Tool International HD63650 50 Ton Air Hydraulic Shop Press, 7.5 Inch Ram Stroke, 6.6 to 34.2 Inch Working Range, Double Speed Pump, Self-Locking Hand Winch, Anti-Shock Pressure Gauge

K-Tool International HD63650 50 Ton Air Hydraulic Shop Press, 7.5 Inch Ram Stroke, 6.6 to 34.2 Inch Working Range, Double Speed Pump, Self-Locking Hand Winch, Anti-Shock Pressure Gauge

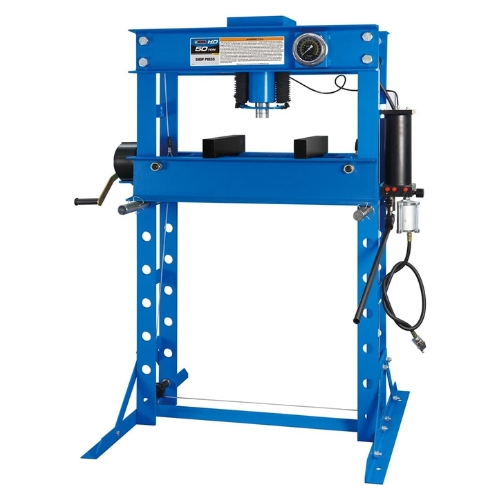

• K-Tool International HD63650 air hydraulic shop press delivers 50 ton pressing force for automotive and industrial tasks. It features a 7.5 inch ram stroke, a 6.6 to 34.2 inch working range, a double speed pump, and an anti-shock gauge. This is a standalone H-frame press, not a replacement part.
• Features:
  • 50 ton capacity supports heavy-duty straightening, bending, and bearing work on vehicles and equipment
  • Double speed pump improves approach speed to reduce setup time between jobs
  • Self-locking hand winch raises and lowers the press bed securely for accurate work positioning
  • Anti-shock pressure gauge with stainless steel frame aids safer, more consistent pressing
  • Six press-bed height positions in 5.5 inch increments expand versatility for varied workpieces
  • Not a replacement part; designed as a general-purpose H-frame shop press for garages and repair shops
• Specifications:
  • Manufacturer: K-Tool International
  • Part Number: HD63650
  • Capacity: 50 ton
  • Working Range: 6.6 to 34.2 inch
  • Ram Stroke: 7.5 inch
  • Pump Type: Air-assisted hydraulic, double speed
  • Bed Adjustment: Six positions in 5.5 inch increments
  • Winch: Self-locking hand winch for bed height adjustment
  • Gauge: Anti-shock pressure gauge
  • Accessories: Non-slip steel blocks included
  • Compliance: Meets or exceeds ASME PASE 2019
  • System Compatibility / Application: H-frame press for pressing, bending, and straightening operations in automotive and industrial shops; not a replacement part
• The 50 Ton Air Hydraulic Shop Press can also be referred to as 50 ton shop press, air hydraulic H frame press, automotive shop press, industrial hydraulic press, and press with hand winch.

K-Tool International supplies professional shop equipment for automotive and industrial service. The HD63650 combines a high-capacity air-hydraulic power unit, self-locking bed winch, and anti-shock gauge to deliver controlled, repeatable pressing performance in busy bays.

Q: What are the verified stroke and working range?
A: The ram stroke is 7.5 inch, and the working range adjusts from 6.6 to 34.2 inch.

Q: How is the press bed adjusted safely?
A: A self-locking hand winch raises and lowers the bed, with six height positions in 5.5 inch increments for secure, repeatable setups.

Q: Does the press include blocks and meet shop equipment standards?
A: Yes. Non-slip steel blocks are included, and the press meets or exceeds ASME PASE 2019 when used as directed.
