Lisle 50350 Side Winder Air Hose Reel, 10 Inches Diameter, Holds Up to 150 Feet of 5/8 Inch Hose Lisle LI50350
View Larger

Lisle 50350 Side Winder Air Hose Reel, 10 Inches Diameter, Holds Up to 150 Feet of 5/8 Inch Hose

Item # LI50350
$112.69
Quantity:      On Hand: 1QTY_CHECK:1-net:-DB:1-VSTOCK:0  Sold As: each


Lisle
More Products from Lisle

  Add to Shopping List
  Save For Later


Overview



Lisle 50350 Side Winder Air Hose Reel, 10 Inches Diameter, Holds Up to 150 Feet of 5/8 Inch Hose

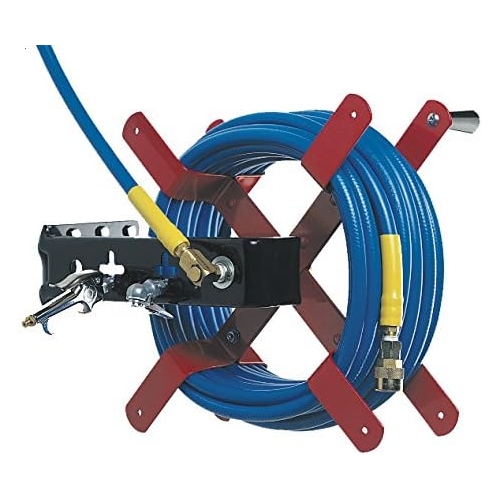

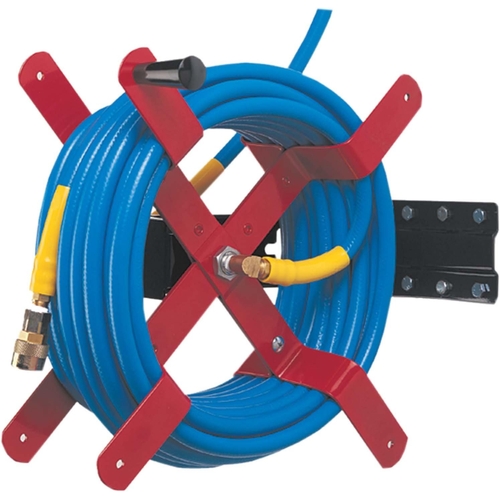

  • The Lisle 50350 Side Winder Air Hose Reel is a Heavy-Duty Wall or Ceiling-Mountable Reel with a 10-Inch Diameter Spool, designed to prevent tight hose coils while providing efficient storage and organized routing of air lines. It features built-in tool hangers and a spring brake for smooth, controlled operation.
  • Features:
    • Large 10-Inch Diameter Reel prevents tight coils, maintaining hose flexibility and airflow efficiency
    • Two Integrated Tool Hangers keep air chucks or blow guns within easy reach
    • 1/4-Inch NPT Brass Swivel maintains constant airflow up to 250 PSI during dispensing or winding
    • Coil Spring Brake stops the hose from unwinding unintentionally while allowing controlled release
    • Durable All-Steel Construction with Powder-Baked Finish; versatile mounting for Bench, Wall, Ceiling, Compressor, or Service Truck installation
  • Specifications:
    • Manufacturer: Lisle
    • Part Number: 50350
    • Reel Diameter: 10 Inches
    • Hose Capacity: Up to 150 Feet of 5/8 Inch O.D. Hose or 100 Feet of 3/4 Inch O.D. Hose
    • Swivel Connection: 1/4-Inch NPT Brass, Rated to 250 PSI
    • Material: All-Steel Frame with Powder-Baked Finish
    • Mounting Options: Bench, Wall, Ceiling, Compressor, or Truck
    • System Compatibility: Designed to Organize and Protect Compressed Air Hoses While Providing Smooth Retrieval and Dispensing
    • Replacement For: Lisle 50340 Side Winder Air Hose Reel (previous version)
  • The Lisle 50350 may also be called Side Winder Hose Reel, Heavy-Duty Air Hose Caddy, Spring-Brake Reel, Air Hose Storage Reel, or Shop Air Hose Organizer.

Lisle Produces Robust Shop Equipment; this Side Winder Air Hose Reel Ensures Organized, Damage-Free Hose Storage with Controlled Dispensing and Built-In Tool Accessibility for Busy Work Environments.

Q: How Much Hose Can the 50350 Reel Accommodate?
A: It Holds Up to 150 Feet of 5/8 Inch Outside Diameter Hose or 100 Feet of 3/4 Inch Hose.

Q: What Prevents the Hose From Unwinding?
A: A Built-In Coil Spring Brake Stops Accidental Unwinding While Still Allowing Smooth, Controlled Dispensing.

Q: Where Can This Reel Be Installed?
A: The Reel Offers Multiple Mounting Options-Bench, Wall, Ceiling, Compressor, or Service Truck-Making It Adaptable to Any Workshop Layout.
