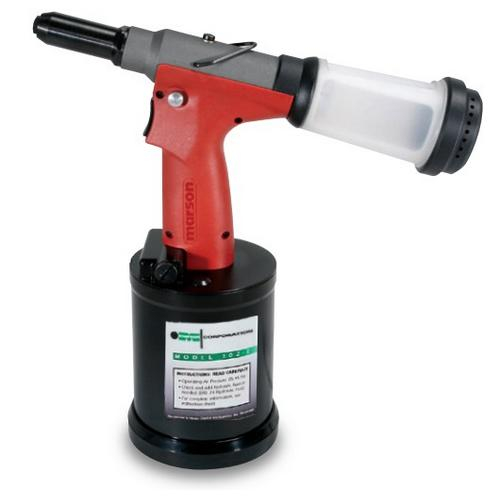

Marson M39048 MP-4V Heavy Duty Air Hydraulic Riveter, 5/32 Inch to 1/4 Inch All Alloys

Marson M39048 MP-4V Heavy Duty Air Hydraulic Riveter, 5/32 Inch to 1/4 Inch All Alloys

• Marson M39048 Air/Hydraulic Riveter Automatic Rivet Tool MP-4V (Marson Rivet Gun)
• This next-generation, professional-series air / hydraulic Marson riveter is designed to be lightweight and well-balanced. Engineered to maximize stroke and pull force with a 3-jaw set. For added convenience, you can direct connect or use the attached swivel. The Marson Rivet Gun is supplied with nosepieces to set rivets in all alloys, and comes complete with adjustment service wrenches, hydraulic fluid, fluid applicator, spare jaws and a removable swivel air connection line with an air OFF/ON valve built in. An adjustable vacuum system switch located inside the mandrel collection bottle allows you to control the force of air needed to hold the rivet in place. Or, you may operate with the vacuum system turned off. Recommended air pressure is 70-95 PSI
• Features
  • The supplied standard 3/16 and 1/4 Inch nosepieces can also be used for structural rivets with the internal locking feature such as the Marson Klik-Lok
  • A 1/4 Inch nosepiece for external locking structural rivets is included
  • Spent mandrels are easily removed from the twist open style collection bottle
  • Adjustable vacuum system control knob located on the upper left side of the handle allows you to control the force of the vacuum air needed to hold the rivet in place and it can also be operated with the vacuum system in the off position
• Specifications
  • Stroke: 1"
  • Pulling Force: 3,420 lbs.
  • Capacity: 5/32" – 1/4", all alloys
  • 1/4" monobolt nosepiece included
  • Weight: 3.7 lbs.
