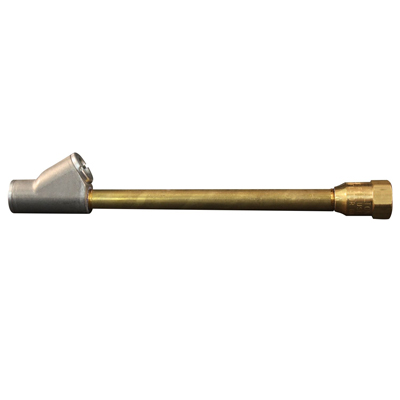

Milton S-693 1/4" FNPT Straight Foot Dual Head Air Chuck, 150 PSI

Milton S-693 1/4" FNPT Straight Foot Dual Head Air Chuck, 150 PSI

• The Milton S-693 1/4" FNPT Straight Foot Dual Head Air Chuck is designed for servicing inner dual truck tires where the valve stem faces inward. Featuring dual locking heads and a straight foot design, this closed sealing type chuck supports secure air line connection up to 150 PSI.
• Features:
  • Dual head straight foot design allows access to inner dual valve stems facing inward.
  • Both ends lock onto the valve core threads to help maintain a secure air connection.
  • 1/4" FNPT female threaded inlet connects to standard air lines.
  • Closed sealing type chuck designed for use on an airline or with an inflator gage.
  • Rated for maximum pressure of 150 PSI for tire inflation applications.
  • Includes 5-1/4" extension to improve reach in dual wheel configurations.
• Specifications:
  • Manufacturer: Milton Industries Inc.
  • Part Number: S-693
  • MPN: S-693
  • UPC: 030937006936
  • Product Type: Dual Head Air Chuck
  • Thread Size: 1/4" Female NPT
  • Maximum Pressure: 150 PSI
  • Design: Straight Foot Dual Head
  • Extension Length: 5-1/4"
  • Application: Inner Dual Tire Inflation
  • Country of Manufacture: USA
  • System Compatibility: Designed for use with standard 1/4" NPT air lines and dual wheel tire valve stems
• The 1/4" Straight Foot Dual Head Air Chuck can also be referred to as dual head tire chuck, inner dual air chuck, straight foot tire inflator chuck, 1/4 inch FNPT air chuck, and truck dual wheel air fitting.

Milton Industries Inc. is a manufacturer of pneumatic accessories and tire inflation equipment, supplying air chucks, couplers, and fittings for automotive, truck, and industrial compressed air applications.

Q: What is the primary use of the Milton S-693 air chuck?
A: It is designed for inflating inner dual truck tires where the valve stem faces inward.

Q: What is the maximum pressure rating?
A: The air chuck is rated for a maximum working pressure of 150 PSI.

Q: What type of connection does this chuck use?
A: It features a 1/4" female NPT threaded inlet for connection to standard air lines.
