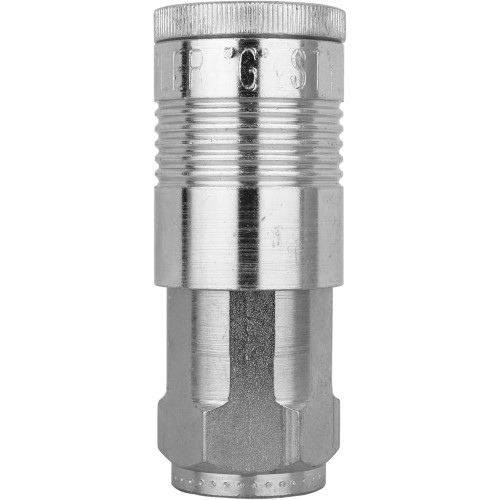

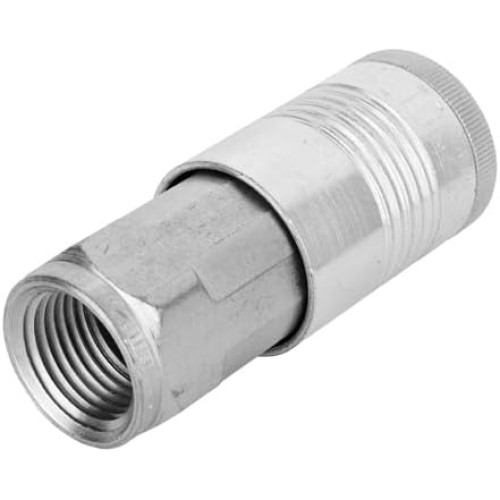

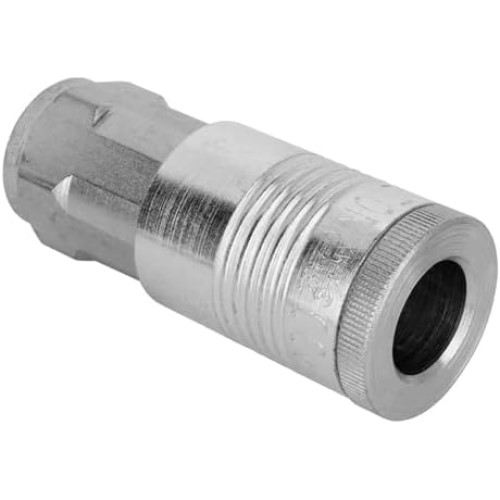

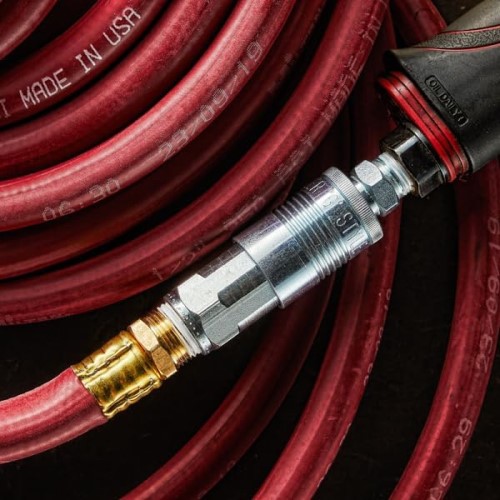

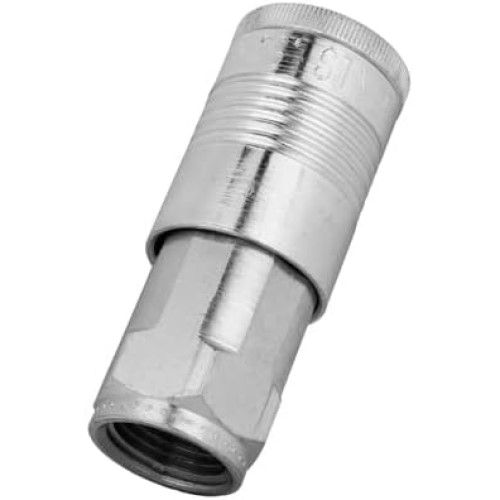

Milton 1815 1/2" FNPT G-Style Quick Connect Coupler, Steel Air Tool Fitting

Milton 1815 1/2" FNPT G-Style Quick Connect Coupler, Steel Air Tool Fitting

• 1/2" FNPT G style couplers are used in applications that require over 60 SCFM. There are two Milton G Style couplers, but both will function the same with G style plugs. Milton® G style couplers are made of steel and are plated to resist rust. With a 1/2" basic flow size, these plugs offer up to 99 SCFM, making them the highest SCFM rated couplers. Maximum pressure of 300 PSI
• Features
  • G-Style couplers are steel, plated to resist rust
  • 8 ball bearing connection
  • Made in USA
• Specifications
  • Coupler Fitting
  • Type: G-Style
  • Designated Size: 1/2 Inch
  • End Connection: Female Threaded
  • Material: Steel
  • Pressure Rating: 300 PSI
  • Temperature Rating: 250 Deg F
  • Overall Dimension: 2.95 Inch Length x 1.18 Inch Width x 1.18 Inch Height
  • Air Flow Rating: 99 SCFM
  • Basic Flow Size: 1/2 Inch
  • Seal Material: Buna-N
  • Packaging Type: Box
  • UPC: 309373049334
