Milton S-684 Tank Valve, Brass, 1/8" Male NPT, 200 PSI Max Pressure

Milton S-684 Tank Valve, Brass, 1/8" Male NPT, 200 PSI Max Pressure

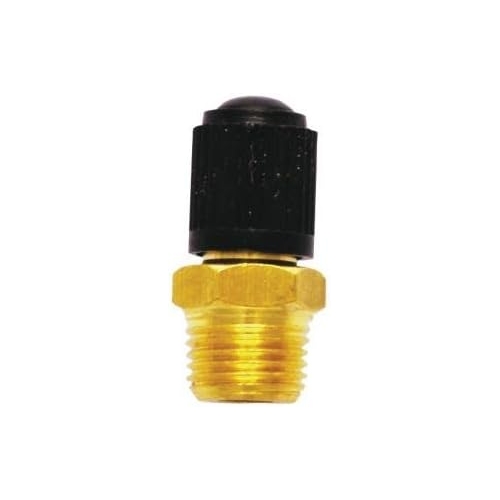

• The Milton S-684 Tank Valve is a brass valve designed for use on air compressor tanks. It features a 1/8 inch male NPT thread, a standard valve core, and a plastic cap for protection. With a maximum rating of 200 psi, it ensures a secure and durable seal in compressed air systems.
• Features:

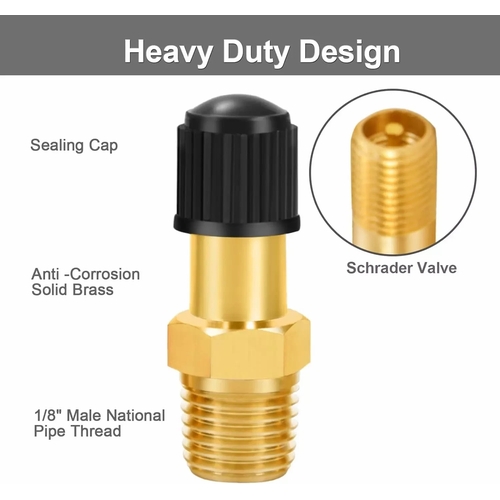

  • Brass body construction provides corrosion resistance and long-lasting performance.
  • 1/8 inch male NPT thread connects directly to compressor tanks and pressure vessels.
  • Includes standard removable valve core for easy service and replacement.
  • Plastic cap protects against dust, dirt, and debris intrusion.
  • Rated to handle up to 200 psi for reliable operation in air systems.
• Specifications:
  • Manufacturer: Milton
  • Part Number: S-684
  • Product Type: Tank valve
  • Material: Brass body with plastic cap
  • Thread Size: 1/8 inch male NPT
  • Valve Core: Standard removable type
  • Overall Length: 1 inch
  • Maximum Pressure: 200 psi

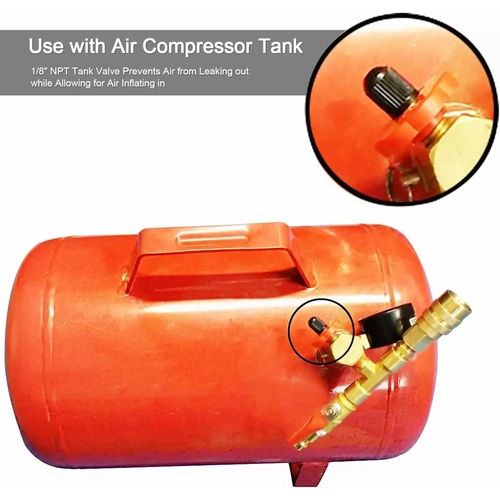

  • System Compatibility / Application: Designed for filling and sealing air compressor tanks and pressure vessels
• Also referred to as Milton S-684 brass tank valve, 1/8 inch NPT air tank valve, compressor valve with cap, brass NPT tank valve, and Milton air tank valve.

Milton manufactures the S-684 Tank Valve, a compact brass valve with 1/8 inch male NPT threading, a protective plastic cap, and a 200 psi rating, built for long-lasting use in compressor tanks and air systems.

Q: What material is the Milton S-684 Tank Valve made from?
A: It is constructed from brass with a plastic protective cap.

Q: What is the maximum working pressure?
A: The Milton S-684 Tank Valve is rated for a maximum of 200 psi.

Q: What is the thread type and size?
A: The valve uses a 1/8 inch male NPT thread to fit standard compressor tanks.
