Milwaukee 2505-22 M12 FUEL 12V Lithium-Ion Cordless 4-in-1 Installation 3/8\" Drill Driver Kit with 4-Tool Heads Milwaukee Tool MLW.2505-22
View Larger

Milwaukee 2505-22 M12 FUEL 12V Lithium-Ion Cordless 4-in-1 Installation 3/8" Drill Driver Kit with 4-Tool Heads

Item # MLW.2505-22
$272.95
Quantity:      On Hand: 9QTY_CHECK:9-net:-DB:9-VSTOCK:0  Sold As: each


Milwaukee Tool
More Products from Milwaukee Tool

  Add to Shopping List
  Save For Later


Overview



Milwaukee 2505-22 M12 FUEL 12V Lithium-Ion Cordless 4-in-1 Installation 3/8" Drill Driver Kit with 4-Tool Heads

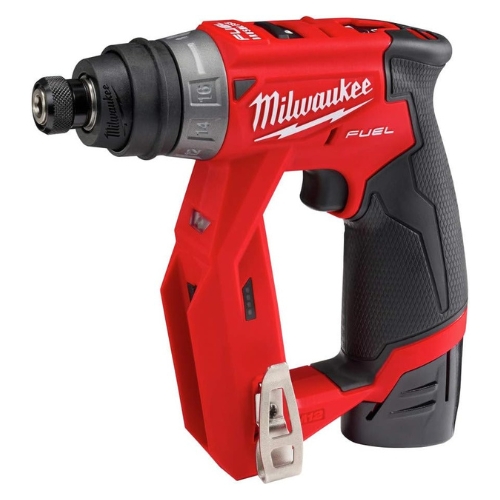

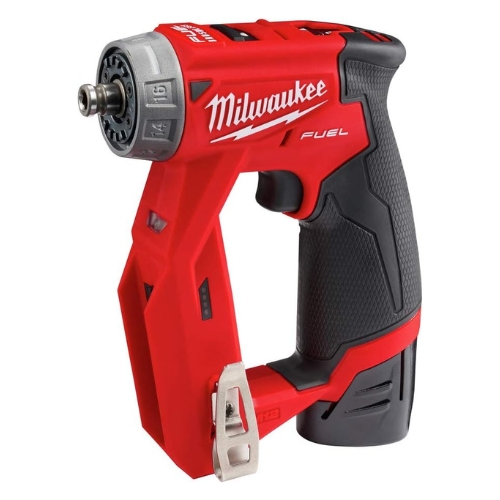

  • Milwaukee 2505-22 is an M12 Fuel installation drill/driver kit that delivers up to 300 in-lbs of torque with four dedicated heads for access and control in tight spaces. The 3/8 inch chuck, 1/4 inch hex, offset, and right angle attachments mount in 16 positions. This is a complete kit, not a replacement part.
  • Features:
    • Four-head 4-in-1 system (3/8 inch chuck, 1/4 inch hex, offset, right angle) provides versatile drilling and fastening in confined areas.
    • Up to 300 in-lbs max torque and compact profile support installation work where access and control are critical.
    • Magnetic bit holder and inline grip improve handling and bit change efficiency on repetitive tasks.
    • Attachments index in 16 positions for precise fastener alignment around obstacles.
    • Complete M12 kit with two batteries and charger; not a replacement part for another SKU.

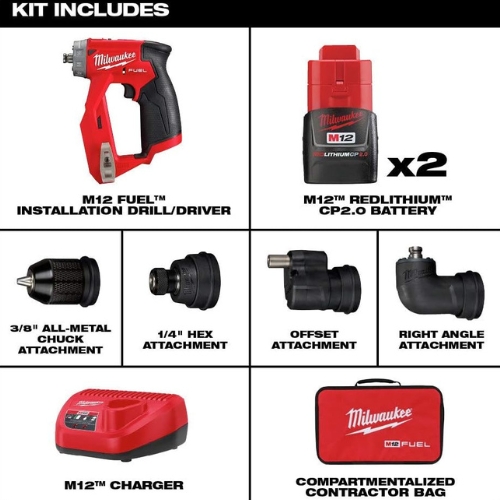

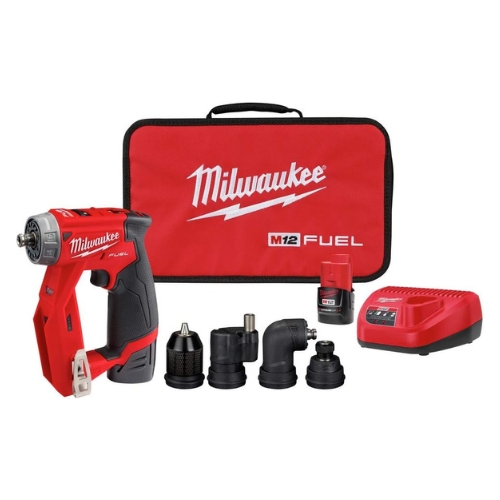

  • Includes:
    • M12 Fuel Installation Drill/Driver (2505-20)
    • Right angle attachment
    • Offset attachment
    • 3/8" metal chuck attachment
    • 1/4" hex attachment
    • M12 REDLITHIUM CP2.0 battery (48-11-2420), quantity 2
    • M12 lithium-ion battery charger (48-59-2401)
    • Compartmentalized contractor bag
    • Belt clip
  • Specifications:
    • Manufacturer: Milwaukee
    • Part Number: 2505-22
    • Type: Cordless 4-in-1 installation drill/driver kit
    • Battery System: M12
    • Max Torque: 300 in-lbs
    • No-load Speed: up to 1600 RPM
    • Chuck: 3/8 inch
    • Hex Collet: 1/4 inch
    • Attachment Positions: 16
    • Width: 5.12 inches
    • Weight: 2.0 pounds with battery
    • System Compatibility or Application: Part of the M12 system; complete kit for drilling and fastening in tight spaces; not a replacement part
  • The M12 Fuel Installation Drill/Driver Kit can also be referred to as installation drill driver, 4 in 1 drill driver, right angle attachment drill, offset attachment drill, and multi head drill driver.



Milwaukee Tool designs professional cordless power tools and accessories across the M12 system, providing compact installation solutions focused on access, control, and reliability for electrical, cabinet, HVAC, and maintenance work.



Q: What attachments are included and how do they mount?
A: The kit includes 3/8" chuck, 1/4" hex, offset, and right angle heads. They connect directly to the tool and can be indexed in 16 positions for access around obstacles.



Q: What batteries and charger come in this kit?
A: Two M12 REDLITHIUM CP2.0 batteries (48-11-2420) and one M12 charger (48-59-2401) are included.



Q: Is this SKU a replacement part or a standalone package?
A: It is a standalone kit that includes the tool, four heads, two batteries, and a charger. It is not a replacement part.
