Motor Guard D-12-1CJ Disposable Spray Gun Filter Jar of 25

Motor Guard D-12-1CJ Disposable Spray Gun Filter Jar of 25

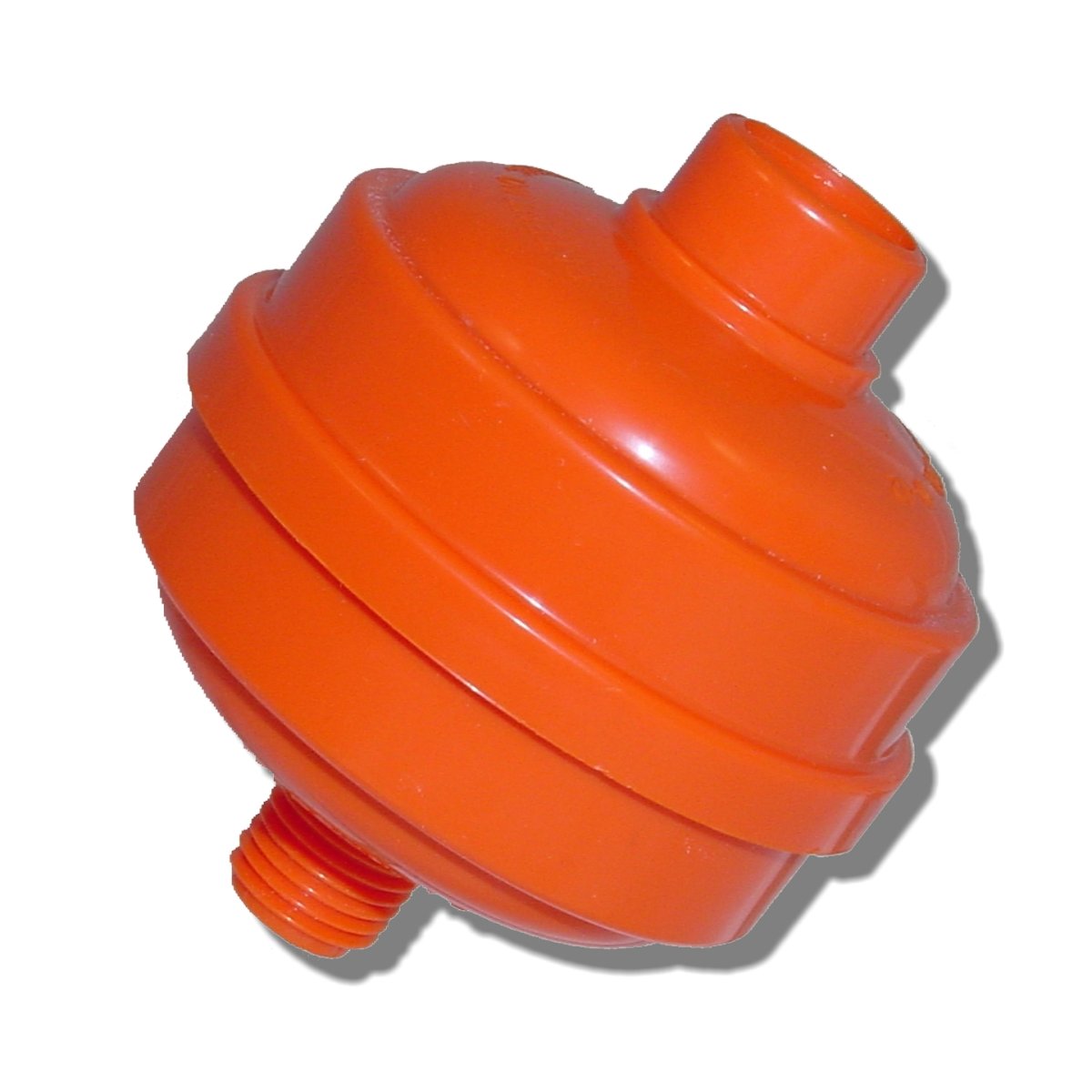

• This is the filter that ends painting failures by absorbing oil aerosols, condensed moisture, and contaminants as small as .01 microns. It attaches directly to the air inlet of the spray gun, and as air is passed between the patented spiral wound element’s compressed layers, particles as small as .01 micron are entrapped. This incredible filtration is accomplished at a true 30 CFM to the spray gun. All this, while at the same time providing maximum efficiency, with a minimal pressure drop, at the optimum flow rate. Eliminate painting failures with the D-12 by removing wet, dirty, damaging air. Holds more moisture with a lower pressure drop at the highest flow rate available. Designed to remove the smallest contaminant particle, oil-aerosol or drop of moisture to supply Clean, Dry, Oil-Free air to the spray gun. Users of the D-12 report reduced paint defects, resulting in increased Paint Department productivity with the ultimate final finishes.
• Features
  • "The "Original" Disposable Compressed Air Spray Gun Filter
  • For years, the Motor Guard's D-12 Disposable Spray Gun Filter has been the answer to the painter's worst nightmare - FISHEYE Now, with the introduction of High Volume, Low Pressure (HVLP) spray guns using shop air, comes even more critical requirements for clean, dry, oil free air supplying the paint gun
  • It looks the same as the "Original" white model you have used for years, but now is supplied in Orange with improved air flow for HVLP as well as High Pressure applications
  • Improvements include increased thread strength for resistance to breakage
  • Designed to remove the smallest contaminant particle, oil-aerosol or drop of moisture to supply clean, dry, oil free air to your spray gun
  • Users of the D-12 report reduced paint defects, resulting in increased paint department productivity with the ultimate final finishes
• Specifications
  • Spray Gun Filter
  • Item: Filter
  • Type: Disposable
  • Overall Size: 2-1/2 Inch x 2-1/2 Inch
  • Used On Item: Spray Gun
  • Pipe Size: 1/4 Inch Female NPS x 1/4 Inch Male Threaded
  • Airflow Rating: 30 CFM
  • Pressure Rating: 100 PSI
  • Removal Rating: 0.01 Micron

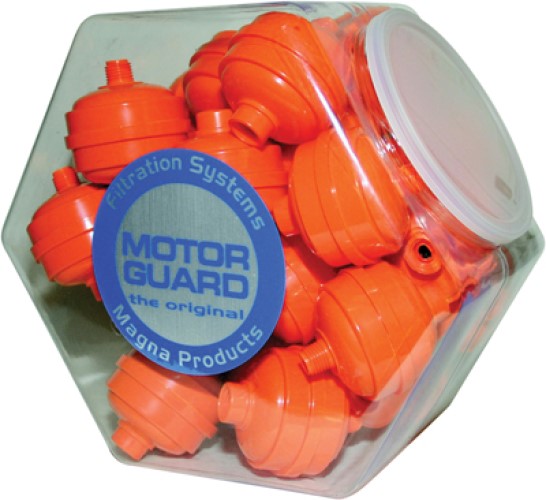

  • Packaging Type: Cookie Jar
