OTC 1180 Push-Puller Set, 10 Ton Capacity, 3-Piece Bar-Type Set

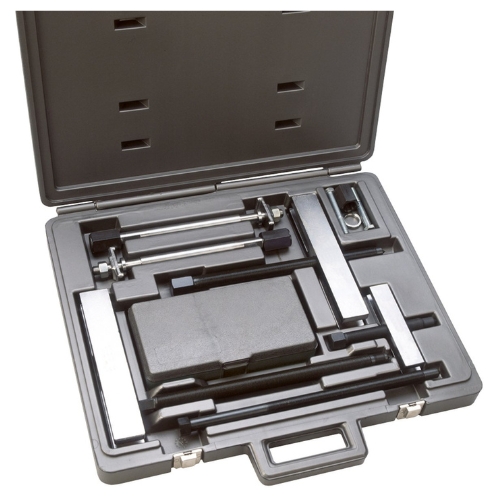

- The OTC 1180 Push-Puller Set is a 10 ton capacity, three piece bar-type set containing pullers designed to push or pull gears, bearings, harmonic balancers and other parts having tapped holes; supplied in a molded plastic storage case for portability and organized storage.
- Features:
- Includes No. 927 push-puller with 10 ton capacity, 8-3/8 inch reach, spread range 2-1/8 inch to 7-1/4 inch; legs of 6-3/4 inch allows use on large gears or bearings where substantial force and reach are needed.
- Includes No. 522 gear and pulley puller: 2 inch to 7-3/4 inch spread (using 1/2 inch cap screws, which are not included) suited for a wide variety of spread applications.
- Includes No. 7393 gear and pulley puller with standard 5-1/2 inch forcing screw plus a special 13 inch forcing screw; spread range 1-1/2 inch to 4-1/4 inch gives flexibility for both shallow and deeper part pulling jobs.
- Includes:
- No. 927 Push-Puller, 10 ton, 8-3/8 inch reach, spread 2-1/8 inch to 7-1/4 inch; puller legs 6-3/4 inch.
- No. 522 Gear and Pulley Puller; spread 2 inch to 7-3/4 inch with 1/2 inch cap screws (cap screws not included).
- No. 7393 Gear and Pulley Puller with both 5-1/2 inch and 13 inch forcing screws; spread 1-1/2 inch to 4-1/4 inch.
- Specifications:
- Manufacturer: OTC
- Part Number: 1180
- Type / Function: 10 ton push-puller set with bar-type pullers for gear, pulley and tapped-hole parts extraction or installation.
- Capacity: 10 ton
- Reach (No. 927): 8-3/8 inch
- Spread Ranges:
- No. 927: 2-1/8 inch to 7-1/4 inch
- No. 522: 2 inch to 7-3/4 inch (with 1/2 inch cap screws)
- No. 7393: 1-1/2 inch to 4-1/4 inch
- Puller Leg Length (No. 927): 6-3/4 inch
- Set Dimensional Size (case): 19.1 x 18.3 x 3.8 inch
- The OTC 1180 can also be referred to as OTC 10 ton push-puller set, OTC bar-type puller set 1180, OTC gear and pulley push puller kit, OTC 10 ton specialty pullers, OTC heavy duty push puller set.
OTC Tools manufactures the 1180 Push-Puller Set as a heavy duty specialty tool set combining three bar-type pullers with varied spread and reach ranges in a storage case; it is intended for professional automotive, industrial or heavy equipment service where extracting or installing components with tapped holes is frequently required.
Q: What is a "push-puller" tool?
A: A push-puller is a bar-type puller that operates by pushing against a central part and pulling via legs or bolts; OTC 927 in this set is a push-puller, while the others are geared or pulley pullers suited for tapped-hole pulling.
Q: What spread and reach ranges do I get in this set?
A: This set gives you No. 927 puller with reach of 8-3/8 inch and spread of about 2-1/8 inch to 7-1/4 inch; then No. 522 from 2 inch to 7-3/4 inch; and No. 7393 from 1-1/2 inch to 4-1/4 inch covering both larger and smaller components.
Q: Do the pullers in this set include all forcing screws and parts needed?
A: The No. 927 and No. 7393 include their respective forcing screws; the No. 522 gear and pulley puller uses 1/2 inch cap screws which are **not included** with the set.
