OTC 6690-1 Ford Cam Tool Kit Update, 18-Piece Cam & Crank Timing Alignment Kit for 3V and 4V Engines (2004 and Later)

OTC 6690-1 Ford Cam Tool Kit Update, 18-Piece Cam & Crank Timing Alignment Kit for 3V and 4V Engines (2004 and Later)

• The OTC 6690-1 Ford Cam Tool Kit Update is an 18-piece precision alignment set designed for camshaft and crankshaft positioning on Ford 3-valve and 4-valve engines from model year 2004 and newer. It expands upon the OTC 6690 Master Kit and supports a wide range of Ford L4, V6, V8, and V10 engines.
• Features:
  • Includes 18 specialized tools for cam and crank alignment on 3V and 4V Ford engines
  • Application coverage for post-2004 Ford L4, V6, V8, and V10 configurations
  • Etched tool reference numbers correspond with the included application guide for quick identification

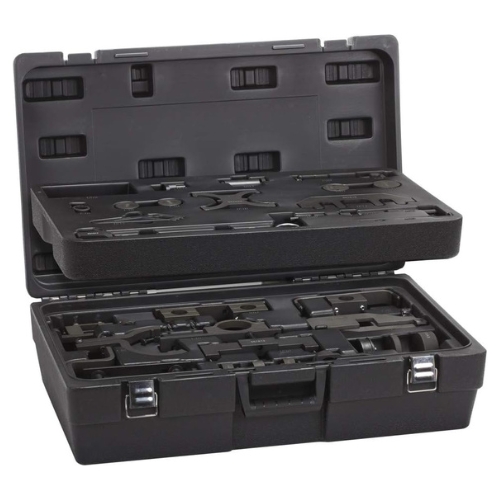

  • Blow-molded case designed with expansion slots to integrate with OTC 6489 tools and form a complete 6690 Master Kit
  • Comprehensive guide with diagrams simplifies tool selection and proper setup

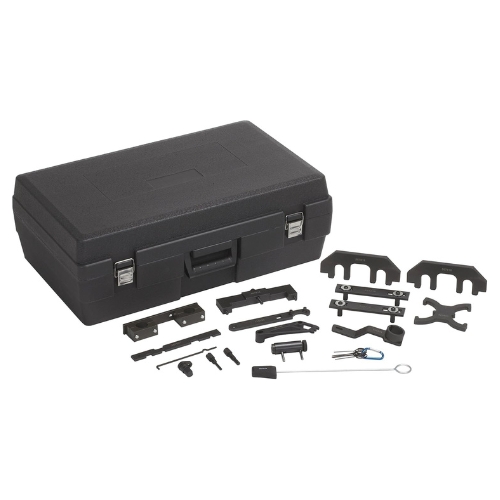

• Includes:
  • Camshaft holding and alignment tools
  • Crankshaft locking and positioning adapters
  • Timing tensioner locking tools
  • Alignment pins and guides
  • Application guide with diagrams
  • Blow-molded storage case
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: 6690-1
  • Tool Count: 18 individual adapters and alignment tools
  • Application: Designed for timing and alignment service on Ford L4, V6, V8, and V10 engines using 3-valve and 4-valve configurations from 2004 onward

OTC, a division of Bosch Automotive Service Solutions, offers the 6690-1 Ford Cam Tool Kit Update as a targeted expansion for modern Ford engines. Its precision alignment tools, etched identifiers, and expandable case design make it ideal for professional technicians servicing 3V and 4V timing systems.

Q: Can this kit integrate with the 6690 Master Kit?
A: Yes - the 6690-1 is designed to complement the 6690 Master Kit, with space in its case to add OTC 6489 tools and create a full Ford timing service set.

Q: Which engine types and years does it cover?
A: It supports Ford 3-valve and 4-valve L4, V6, V8, and V10 engines from model year 2004 and later.

Q: Does it include a reference guide?
A: Yes - it includes a detailed application guide with diagrams that correspond to each etched adapter for accurate identification and use.
