OTC 6690 Ford Master Cam Tool Service Kit, Ford Timing Chain and Belt Camshaft Alignment Kit (1991-2014 Engines)

OTC 6690 Ford Master Cam Tool Service Kit, Ford Timing Chain and Belt Camshaft Alignment Kit (1991-2014 Engines)

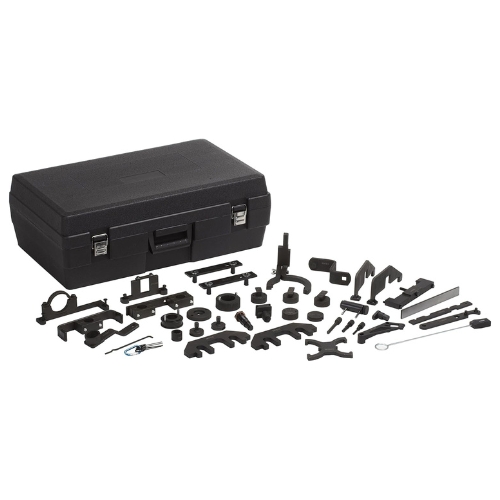

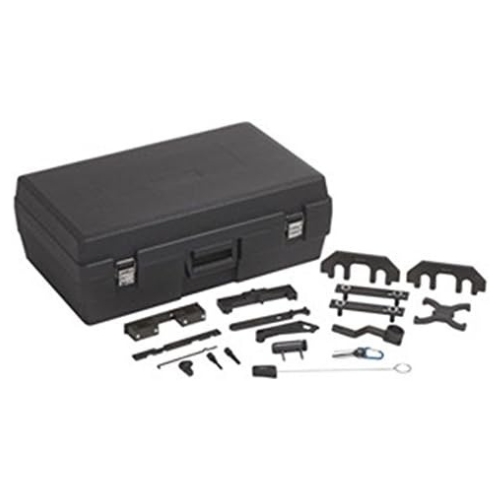

• The OTC 6690 Ford Master Cam Tool Service Kit is a comprehensive timing and alignment solution designed for Ford engines from 1991 through 2014. It includes 40 precision tools and adapters for locking, aligning, and timing camshafts and crankshafts on engines with either timing chains or belts.
• Features:
  • Covers a wide range of Ford L4, V6, V8, and V10 engines with 2-valve, 3-valve, and 4-valve configurations
  • Includes specialized adapters for camshaft holding, crankshaft alignment, and chain/belt tensioning operations
  • Laminated reference guide simplifies tool identification and application by engine type
  • Each adapter is etched with a reference number corresponding to the instruction guide for fast setup
  • Organized in a blow-molded storage case with dedicated slots for all components
• Includes:
  • Camshaft holding adapters (multiple configurations)
  • Crankshaft locking and alignment tools
  • Timing chain and belt tensioner locking tools
  • Various pins, plates, and guides for precise cam/crank alignment
  • Laminated reference guide and molded storage case
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: 6690
  • Tool Count: 40 individual adapters and service tools
  • Application: For camshaft and crankshaft alignment, locking, and timing work on Ford engines from 1991 through 2014 (and select later models)

OTC, part of Bosch Automotive Service Solutions, designed the 6690 Ford Master Cam Tool Service Kit to deliver professional-grade coverage for Ford timing systems. With comprehensive engine support, precision-built tools, and clear organization, it ensures accurate cam and crank alignment across multiple Ford engine families.

Q: Does this kit service both timing chain and timing belt engines?
A: Yes - it includes the adapters and tools required to align and lock both chain- and belt-driven Ford engines.

Q: Is a reference chart included?
A: Yes - the kit comes with a laminated reference guide and molded case with clearly marked adapter locations.

Q: How many tools and adapters are included?
A: The set contains 40 precision components, covering a wide range of Ford engines from 1991 through 2014.
