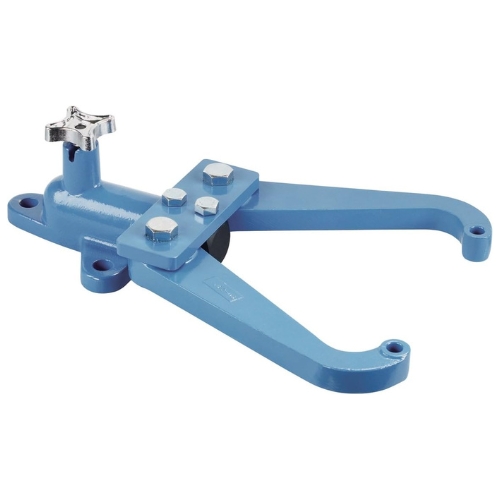

OTC 7020 Bench-Mounted Holding Fixture for Transmissions, Differentials, and Small Engines
OTC 7020 Bench-Mounted Holding Fixture for Transmissions, Differentials, and Small Engines
- The OTC 7020 Bench-Mounted Holding Fixture secures heavy components such as small engines, transmissions, and differential assemblies and allows full 360-degree rotation with positive stops at 90-degree intervals. It handles up to 250 lb load capacity.
- Features:
- 360-degree rotation capability with positive stops every 90 degrees to lock orientation securely
- Three sides remain fully exposed when mounted, improving access during service
- Removable mounting arms for use in limited space or to simplify setup
- Heavy-duty construction supports up to 250 lb of weight
- Specifications:
- Manufacturer: OTC (Bosch Automotive Tools)
- Part Number: 7020
- Load Capacity: 250 lb
- Rotation: 360degrees, with positive stops at 90degrees increments
- System Compatibility / Application: Holds and rotates small engines, transmissions, differential housings, and similar automotive assemblies on a workbench for repair and service work
- The Bench-Mounted Holding Fixture is also referred to as OTC 7020 holding fixture, bench rotation fixture, engine/transmission positioning stand, and bench mounting rotator.
The OTC 7020 Holding Fixture offers stable, rotatable support for engine or drivetrain components up to 250 lb. Its positive lock positions, open-access design, and removable arms make it ideal for shop repairs involving transmissions, differentials, or small engines.
Q: Do I need to bolt this to a bench?
A: Yes. For stability and safety, it should be securely fastened to a solid bench or weldment surface before mounting components.
Q: Can it hold a transmission or differential housing?
A: Yes. It is rated to support up to 250 lb, which is sufficient for many small to medium transmissions, differential cases, and small engine assemblies.
Q: Will the rotation locks hold under load?
A: Yes. The fixture has positive stops at every 90-degree position to lock rotation and prevent slippage under heavy work.
