S.U.R.&R. KP1500 Deluxe Fuel Line Replacement Kit, 168-Piece + 75 ft Tubing S.U.R.&R. SRR.KP1500
View Larger

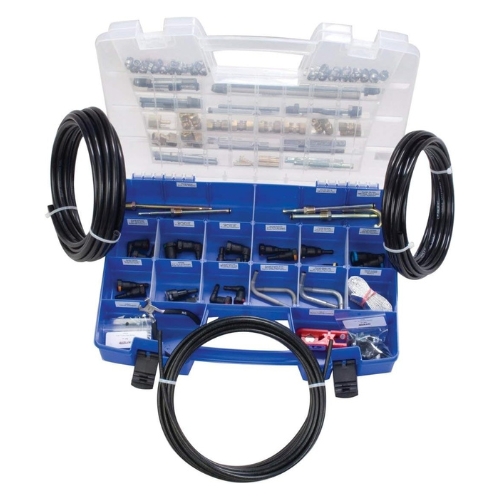

S.U.R.&R. KP1500 Deluxe Fuel Line Replacement Kit, 168-Piece + 75 ft Tubing

Item # SRR.KP1500
$519.77
Quantity:      Out of Stock*QTY_CHECK:0-net:-DB:0-VSTOCK:0  Sold As: each
Call for availability


S.U.R.&R.
More Products from S.U.R.&R.

  Add to Shopping List
  Save For Later


Overview



S.U.R.&R. KP1500 Deluxe Fuel Line Replacement Kit, 168-Piece + 75 ft Tubing

  • The S.U.R.&R. KP1500 Deluxe Fuel Line Replacement Kit is a comprehensive fuel line repair kit that includes nylon tubing, connectors, adapters, clamps, holders, and tools to handle 1/4", 5/16", and 3/8" fuel line repairs across domestic and import vehicles. The kit is designed for easy hand installation without special insertion tools and supports pressure up to 200 psi.
  • Features:
    • Covers 1/4", 5/16", 3/8" line sizes - full versatility for most fuel line repairs
    • No special insertion tools required - connectors install by hand to reduce labor time
    • Nylon tubing rated to 200 psi - safe for gasoline, ethanol blends, and diesel
    • Includes comprehensive adapters and compression fittings for OEM line integration
    • Organized kit with parts labeled and arranged for quick part selection
  • Includes:
    • Universal Quick-Connect Push-On Adapters:
      • KP020 (3/8" to 3/8") x 2
      • KP030 (3/8" to 5/16") x 2
      • KP035 (5/316" to 3/8") x 2
      • KP040 (5/16" to 5/16") x 2
      • KP045 (1/4" to 5/16") x 2
      • KP120 (5/16" to 3/8", 90degrees) x 2
      • KP125 (3/8" to 3/8", 90degrees) x 2
      • KP130 (3/8" to 5/16", 90degrees) x 2
      • KP135 (5/16" to 5/16", 90degrees) x 2
    • Line Adapters:
      • K070 (5/16" GM line) x 2
      • K075 (3/8" GM line) x 2
      • K095 (5/16" GM female to nylon) x 2
      • K100 (3/8" GM female to nylon) x 1
      • K107 (14 mm foreign female to nylon) x 1
      • K127 (14 mm foreign angled) x 1
      • K137 (14 mm foreign) x 1
      • K140 (5/16" rubber hose to nylon) x 2
      • K145 (3/8" rubber hose to nylon) x 2
      • K150 (5/16" quick connect to nylon) x 2
      • K155 (3/8" quick connect to nylon) x 2
      • K160 (1/4" to 5/16" quick connect to nylon) x 1
      • K165 (3/8" to 5/16" nylon to nylon reducer) x 1
      • K170 (5/16" GM male to rubber hose) x 1
      • K175 (3/8" GM male to rubber hose) x 1
      • K270 (5/16" GM short) x 2
      • K275 (3/8" GM short) x 2
      • 38180 (3/8" 180degrees GM fuel filter line adapter) x 1
      • 3890 (3/8" 90degrees elbow) x 2
      • 51690 (5/16" 90degrees elbow) x 2
    • Tubing Rolls:
      • K003 (25 ft of 1/4" nylon tubing)
      • K005 (25 ft of 5/16" nylon tubing)
      • K010 (25 ft of 3/8" nylon tubing)
    • Unions and Compression Fittings:
      • K050 (5/16" nylon to steel compression) x 2
      • K055 (5/16" nylon to nylon compression) x 2
      • K060 (3/8" nylon to steel compression) x 2
      • K250 (1/4" nylon to steel compression) x 2
      • K255 (1/4" nylon to nylon compression) x 2
      • K057 (5/316" nylon to nylon push-on union) x 2
      • K067 (3/8" nylon to nylon push-on union) x 2
    • Clamps & Holders:
      • K2980 (5/16" 360degrees seal clamp) x 33
      • K2982 (3/8" 360degrees seal clamp) x 28
      • TH38 (3/8" nylon tubing holder with self-tapping screws) x 20
      • TH516 (5/316" nylon tubing holder with self-tapping screws) x 20
    • Tools & Accessories:
      • 14005 (3 ft heat shield sleeve)
      • CP01 (clamp pliers)
      • TC-1 (tubing & hose cutter)
  • Specifications:
    • Manufacturer: S.U.R.&R.
    • Part Number: KP1500
    • Piece Count: 168 parts plus 75 ft of tubing
    • Tubing: 75 ft total (25 ft each of 1/4", 5/16", 3/8" nylon tubing)
    • Supported Line Sizes: 1/4", 5/16", 3/8"
    • Pressure Rating: Tubing rated to 200 psi
    • System Compatibility / Application: For fuel line repair and replacement in automotive, marine, and small engine systems using gasoline, ethanol, or diesel fuel
  • The S.U.R.&R. KP1500 Deluxe Fuel Line Replacement Kit is also known as SUR&R 1500 Deluxe Fuel Kit, KP1500 line repair kit, SURR KP1500 fuel line set, and 168-piece fuel line repair kit.



S.U.R.&R. Auto Parts manufactures fluid line repair solutions that reduce downtime and stock requirements by enabling in-vehicle fuel line assemblies and repairs.



Q: Does this kit require special tools for assembly?
A: No. The kit is designed for hand assembly-no specialty insertion tools required.



Q: What fuels is this tubing safe for?
A: The nylon tubing is rated for gasoline, ethanol blends, and diesel fuel applications.



Q: Can this kit handle OEM style fuel line construction?
A: Yes. With the included adapters, compression fittings, unions, and tubing, it can replicate OEM fuel lines for many vehicles.
