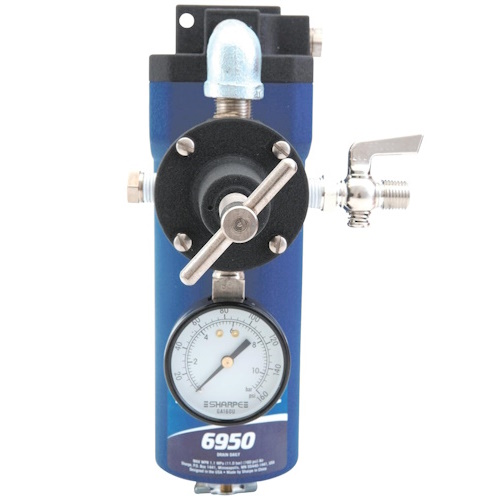

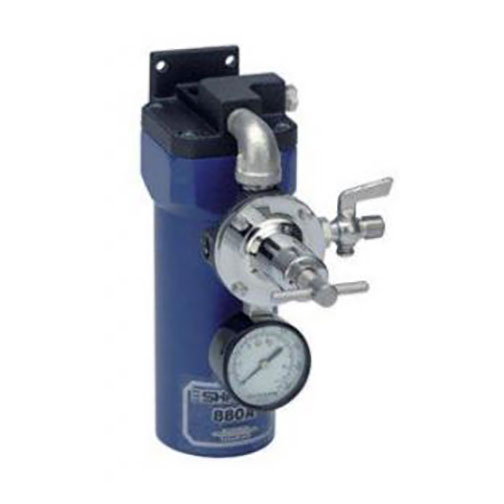

Sharpe 6950 880A Air Control Unit, 160 lb. Inverted Gauge, 1/2" Inlet, 3/8" Outlet
Sharpe 6950 880A Air Control Unit, 160 lb. Inverted Gauge, 1/2" Inlet, 3/8" Outlet
- The Sharpe 6950 880A Air Control Unit is designed to effectively remove water, oil, and contaminants from compressed air systems, ensuring optimal performance of air cylinders and tools. Ideal for automotive and industrial applications, this unit enhances equipment longevity and efficiency.
- Features:
- Equipped with a 160 lb. inverted gauge for precise pressure monitoring
- Includes one 18C-3R regulator for accurate air pressure control
- 1/2" female threaded inlet and 3/8" female threaded outlet with 1/4" plugged port for versatile connectivity
- Highly effective at removing water, oil, and contamination to protect air cylinders and air tools
- Durable construction suitable for demanding industrial environments
- Specifications:
- Manufacturer: Sharpe
- Part Number: 6950
- Model: 880A
- Air Inlet Size: 1/2" FPT (f)
- Air Outlet Sizes: 3/8" FPT (f) and 1/4" FPT (f) (plugged)
- Maximum Operating Pressure: 200 psi (13.6 bar)
- Filter Capacity: 75 cfm
- Regulator Capacity: 50 cfm
- Filtration Level: 5 microns
- The 880A Air Control Unit can also be referred to as air pressure regulator, compressed air filter unit, pneumatic air control system, industrial air filtration unit, and air compressor regulator assembly.
Sharpe is a renowned manufacturer specializing in high-quality air control systems and spray equipment. With a commitment to innovation and durability, Sharpe products are trusted by professionals in automotive and industrial sectors worldwide.
Q: What is the maximum pressure this unit can handle?
A: The Sharpe 880A Air Control Unit is equipped with a 160 lb. inverted gauge, indicating it can handle pressures up to 160 psi.
Q: Is this unit suitable for use with all air tools?
A: Yes, the 880A Air Control Unit is designed to protect and enhance the performance of a wide range of air tools by effectively removing contaminants from the compressed air supply.
Q: How do I install the Sharpe 880A Air Control Unit?
A: Installation involves connecting the 1/2" female threaded inlet to your air supply line and the 3/8" female threaded outlet to your air tool or system. Ensure all connections are secure and check for leaks before operation.
