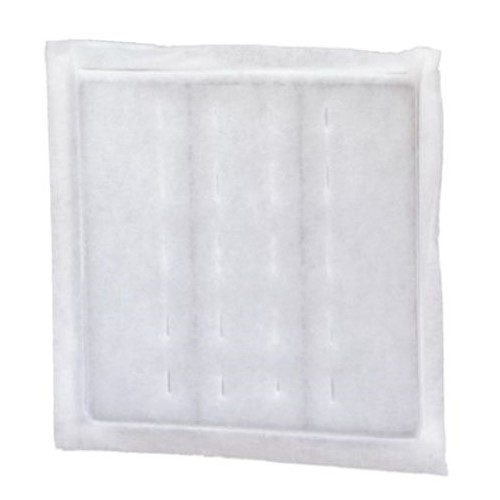

Viledon 010-020 R2/4 Paint Booth Pre-Filter Panel, 20 in W x 0.9 in D x 20 in H, Case of 24

Viledon 010-020 R2/4 Paint Booth Pre-Filter Panel, 20 in W x 0.9 in D x 20 in H, Case of 24

• R2 Series media is designed by Viledon® for equipment protection or for general filtration requirements. The progressively structured single ply media is thermally bonded and treated with a special adhesive tackifier.
• Features
  • R2 cut pads, self-support panels and links are designed for >80% efficiency on 5 micron particles and larger
  • R2 cut pads, self-support panels and links are tackified throughout the entire media
  • R2 panels are designed with 10 ga steel support frame sealed between media layers, using durable RF (radio frequency) welding system
  • The R2 Series is environmentally friendly, designed to comply with most landfill regulations
  • Temperature-resistance continuous 212 deg F, peaks at 250 deg F
• Specifications
  • Part No.: 010-020
  • Product Line: VIL
  • MFR Model: 010-020
  • Standard/Approvals: ASHRAE 52.2 | UL 900 Class 2
  • Applications: For spray paint booths
  • Manufacturer: Viledon / Freudenberg
  • Brand: Viledon®
  • Part Status: A
  • Series: R2/4
  • Width (in): 20
  • Depth (in): 0.9
  • Height (in): 20
