Associated Equipment 12-1015 Battery Tester, Plastic Hand Held Conductance Analyzer, 12 Volt System
Associated Equipment 12-1015 Battery Tester, Plastic Hand Held Conductance Analyzer, 12 Volt System
- The Associated Equipment 12-1015 Battery Tester is a plastic hand-held conductance analyzer for 12 volt battery and electrical systems. It includes a built-in thermal printer, USB port, and stores up to 250 test series for diagnostics of batteries, starter, alternator, and ground circuits.
- Features:
- Tests multiple 12 volt battery types: flooded, AGM, gel-cell, and enhanced flooded (start/stop) batteries.
- Runs battery, starter, alternator, ground and diode ripple tests with printed results via onboard thermal printer.
- 10-line LCD display for easy reading of measured values including CCA, internal resistance, voltage, and estimated remaining life.

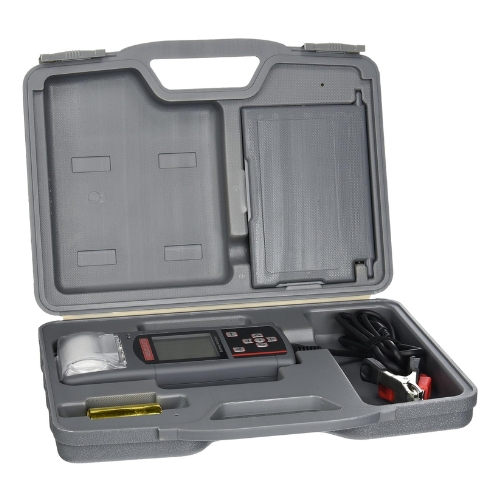

- Includes carrying case, USB cable, software CD, and thermal paper roll for printing.
- Memory function stores the last 250 test records with or without external power.
- Specifications:
- Manufacturer: Associated Equipment
- Part Number / Model: 12-1015
- Material: Plastic housing
- Operating Voltage: 9-15 Volts DC
- Display: 10-line LCD
- Battery Testing Current Range: 100-1700 CCA (depending on format used: CCA, EN, IEC, SAE, JIS, CA)
- Memory Capacity: 250 test records
- Includes: Built-in thermal printer, USB connection for PC, software CD, carrying case, thermal paper roll
- System/Application: Battery, starter, alternator, ground circuit diagnostics
- The Associated Equipment 12-1015 can also be called hand-held battery tester, conductance battery analyzer, starter and alternator tester with printer, 12 volt electrical system diagnostic tool, and plastic portable battery tester.
The Associated 12-1015 battery tester delivers comprehensive diagnostics with conductance technology, thermal printing, and memory storage; it is portable and suited for automotive shops, service bays, or mobile technicians.
Q: What battery types can the 12-1015 test?
A: It can test flooded, AGM, gel cell, and enhanced flooded (start/stop) 12 volt batteries.
Q: Does the unit provide test history?
A: Yes, it can store up to 250 test results with or without power, and these can be printed or transferred to PC via USB.
Q: What functions besides battery testing does it do?
A: It also checks starter cranking, alternator charging (loaded and no load), ground circuit condition, and diode ripple.
