Autel BT609 Battery & Electrical System Analyzer, Aluminum Wireless Diagnostics Tablet, 12 Volt 100-3000 CCA Adaptive Conductance Autel AUL.BT609
View Larger

Autel BT609 Battery & Electrical System Analyzer, Aluminum Wireless Diagnostics Tablet, 12 Volt 100-3000 CCA Adaptive Conductance

Item # AUL.BT609
$637.88
Quantity:      On Hand: 2QTY_CHECK:2-net:-DB:2-VSTOCK:0  Sold As: each


Autel
More Products from Autel

  Add to Shopping List
  Save For Later


Overview



Autel BT609 Battery & Electrical System Analyzer, Aluminum Wireless Diagnostics Tablet, 12 Volt 100-3000 CCA Adaptive Conductance

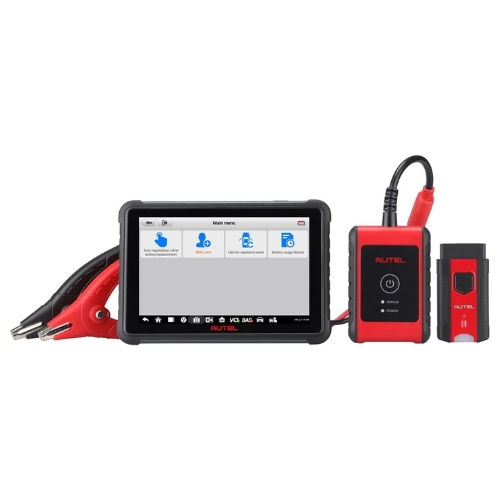

  • The Autel BT609 Battery & Electrical System Analyzer is an aluminum touchscreen tablet designed for wireless diagnostics of 12 volt batteries, cranking and charging systems. It features Adaptive Conductance testing, supports multiple battery types, and includes full system code reading/clearing and vehicle health diagnostics.
  • Features:
    • Tests 12 volt batteries from 100 to 3000 CCA; supports Flooded, AGM, AGM Spiral, EFB, and GEL battery chemistries.
    • Wireless: features Wi-Fi, Bluetooth 5.0 + EDR + BLE, USB host/OTG ports, and Micro SD expansion.
    • VIN scan, battery barcode scan, or manual VIN entry for automatic vehicle and battery identification.
    • Read and erase codes across all available vehicle systems; view live data and perform maintenance service resets.
    • 7.0-inch capacitive touch screen with 1280 x 800 resolution for clear visuals; includes front camera, ambient light sensor, microphone and speaker.
  • Specifications:
    • Manufacturer: Autel
    • Part Number / Model: BT609
    • Material: Aluminum housing
    • Battery Test Range: 100 to 3000 CCA at 12 volts
    • Supported Systems: 12 volt cranking and charging systems
    • Supported Battery Types: Flooded, AGM, AGM Spiral, EFB, GEL

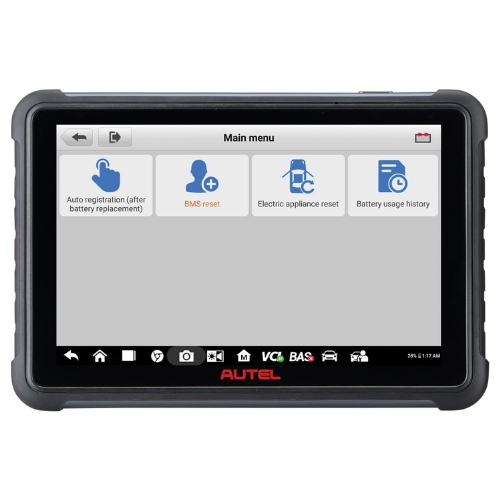

    • Display: 7.0-inch TFT-LCD 1280 x 800 capacitive touch screen
    • Memory & Storage: 2 GB RAM; 64 GB internal storage; Micro SD support up to 128 GB
    • Connectivity: Wi-Fi (IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0 + EDR + BLE, USB host and OTG
    • Power: 5800 mAh lithium-polymer internal battery; charging via 5V / 2A adapter
    • Operating Temp: 0 to 50degrees C
    • Storage Temp: -10 to 60degrees C
    • System/Application: Diagnostic tablet for battery, electrical systems, all-systems health check, and maintenance functions
  • The Autel BT609 may also be referred to as MaxiBAS BT609 Tablet Analyzer, adaptive conductance wireless diagnostics tool, 12-volt battery health tablet, full system scanner & battery tester, and Autel wireless electrical system diagnostic tablet.

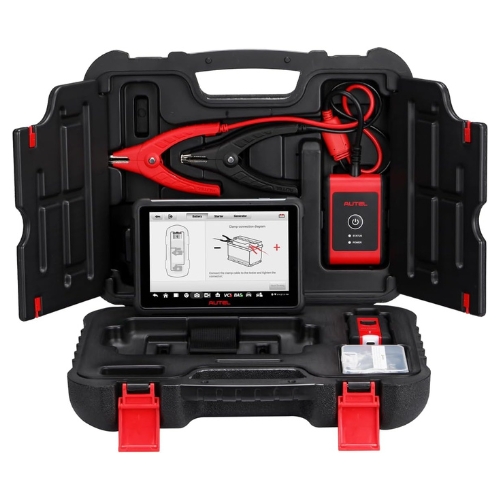

The Autel BT609 Aluminum Tablet combines advanced battery diagnostics, wireless connectivity, and full system health capabilities in a rugged format-built for workshops and mobile service professionals who need fast, reliable battery and electrical diagnostics.



Q: What is the supported CCA range?
A: It supports testing 12 volt batteries from 100 to 3000 CCA.



Q: Which battery types does the BT609 support?
A: It supports Flooded, AGM, AGM Spiral, EFB, and GEL battery types.



Q: Does it support vehicle diagnostics beyond battery testing?
A: Yes, it can read and erase codes for all available vehicle systems and display live data.
