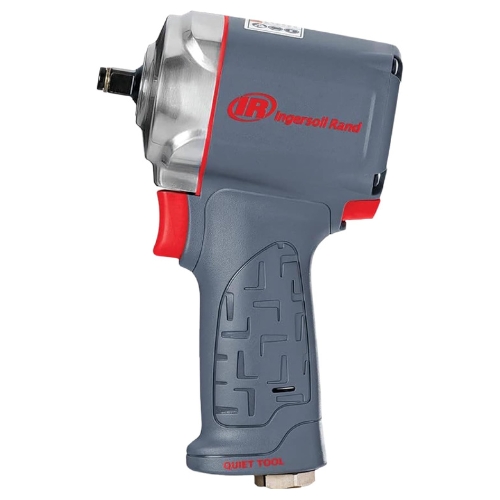

Ingersoll Rand 36QMAX Ultra-Compact Impact Wrench, 1/2 Inch, Quiet Technology

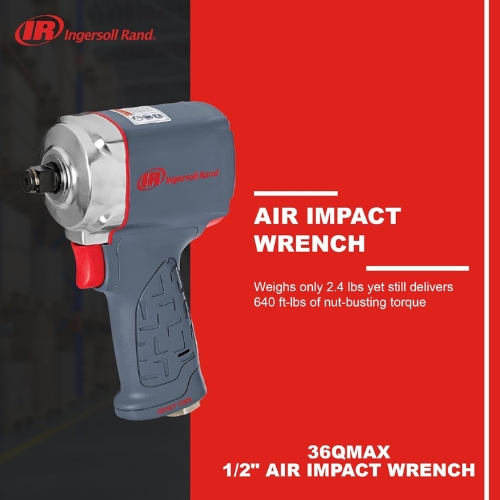

- Ingersoll Rand 36QMAX is a 1/2 inch drive ultra-compact pneumatic impact wrench featuring Quiet Technology, delivering up to 640 ft-lb of nut-busting torque while weighing only 2.4 lb excellent for tight spaces and operator comfort.
- Features:
- Twin-hammer impact mechanism for smooth, reliable torque delivery and long service life.
- Quiet design (sound dampening) to reduce noise exposure in shop environments.
- 3-mode power regulator allowing adjustment of torque output to match application demands.

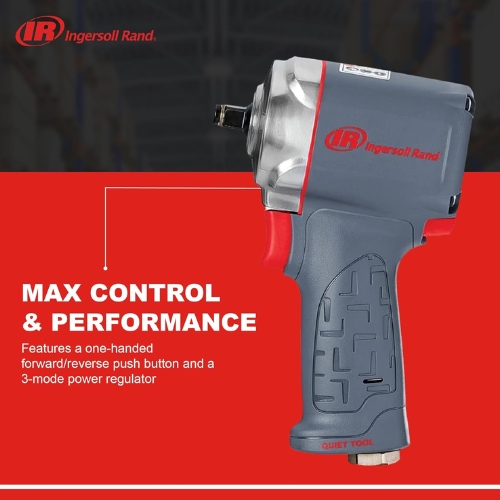

- One-hand forward/reverse push button for convenient directional control.
- Lightweight composite housing at 2.4 lb improves maneuverability and reduces fatigue in extended work.
- Specifications:
- Manufacturer: Ingersoll Rand
- Part Number: 36QMAX
- Drive Size: 1/2 inch square drive
- Nut-Busting Torque (reverse): 640 ft-lb
- Forward Torque (maximum): 380 ft-lb
- Maximum Reverse Torque: 470 ft-lb
- Free Speed: 8 000 rpm
- Impacts per Minute: 1 300
- Air Inlet: 1/4" NPT
- Minimum Hose Size: 3/8 inch
- Average Air Consumption: 24 CFM
- Air Consumption at Load: 19 CFM
- Sound Pressure / Sound Power (impact condition): 91.3 dB(A) / 102.3 dB(A)
- Vibration Level: 8.1 m/s² (measurement uncertainty 1.2 m/s²)
- System Compatibility: Designed for use with standard 1/2" drive impact sockets and accessories; suitable for automotive, equipment maintenance, assembly, and repair tasks in constrained spaces.
- The Ingersoll Rand 36QMAX impact wrench can also be referred to as IR 36QMAX, 36QMAX Ultra-Compact Impact Wrench, 1/2" Quiet Impact Tool, high torque stubby impact, and Ingersoll Rand 36QMAX Quiet.
Ingersoll Rand is a global leader in industrial solutions, providing innovative and reliable air, fluid, energy, and material handling equipment engineered for durability, efficiency, and performance across manufacturing and service industries.
Q: What air pressure and flow are required for optimal 36QMAX performance?
A: Use clean, dry, regulated air at about 90 psi, with at least 3/8" hose. The tool draws 24 CFM average and 19 CFM under load, so your supply system must handle those demands.
Q: Can I use this impact wrench with standard 1/2" drive sockets?
A: Yes, It uses a standard 1/2" square drive (with typical retaining ring or friction ring depending on variant). Use impact-rated sockets for durability.
Q: What makes the "Quiet Technology" version different?
A: The Quiet version includes sound dampening and exhaust muffling to reduce noise exposure (91.3 dB(A) impact sound), which is beneficial in enclosed or high-noise environments.
