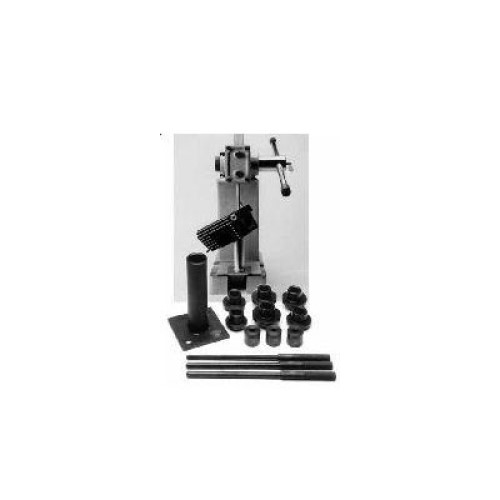

Jims USA 2240 Head Holder Valve Guide Remover and Installer - Harley Davidson Motorcycles

Jims USA 2240 Head Holder Valve Guide Remover & Installer - Harley Davidson Motorcycles

• This kit has been designed to remove and install shoulderless guides by pressing them out into the intake or exhaust port. If the guides are shouldered, you must remove them with a hammer, press, or guide driver from the inside of port outwards, only after you have cleaned and removed all carbon from around the O.D. of guides. This tool will also install shouldered guides. This Tool may be used in other than stock valve seat sizes. If you have a head with an over size valve seat, you will need to find (from the list of adapters, see below) the appropriate size adapter that will fit the seat the tightest.
• Use on Big Twin 1948-Present: Pan, Shovel, Evo, and T/C. Use on Sportster 1957-Present
• Number of Pieces: 16 (comes with adapters to fit all H-D and aftermarket heads.)
• Kit Contents
  • BASE ASSEMBLY 2240-I
  • ADAPTER, INT, 1986-03 883 XL,, ALL T/C EXH 2240-2
  • ADAPTER, INT, B/T, EVO, 1986 XL1100 EXH. SHOVELHEAD AND 1986-03 883 EVO XL 2240-3
  • ADAPTER, INT, SHOVEL HEAD / EXH BIG TWIN, EVO, 1986 1100, XL, MOST ALL T/C 2240-4
  • ADAPTER, INT / EXH, IRONHEAD XL 2240-5
  • ADAPTER, INT, 1987-1100 / 1988-03 1200 XL, EVO 2240-6
  • ADAPTER, EXH, 1987-1100 / 1988-03 1200 XL, EVO 2240-7
  • PILOT .306 DIAMETER 2240-16
  • PILOT .371 DIAMETER 2240-17
  • PILOT .338 DIAMETER 2240-18
  • PILOT 7MM DIAMETER 2240-19
  • INSERT, .310 DIAMETER 2240-11-1
  • INSERT, .375 DIAMETER 2240-11-2
  • INSERT, .342 DIAMETER 2240-11-3
  • INSERT, 7MM DIAMETER 2240-11-4
  • INSTRUCTIONS 2240-IS
• Used on Removing or Installing Shoulder Valve Guide
• Adapters are supported by a support stand
• Makes pressing valve guides in and out simple
• A special guide alignment shaft is designed into this tool
• This shaft holds the right angle for the best possible guide installations
• Save time and money by installing the guides, in line, with the valve seats, time and time again for much less seat grinding
• JIMS offers a variety of parts and tools specifically designed for your Harley-Davidson motorcycle
