Midtronics MDX-700P HD Battery and Electrical System Analyzer with Integrated Printer, 6 and 12 Volt Batteries, 12 to 24 Volt System Testing, 100 to 2000 CCA

Midtronics MDX-700P HD Battery and Electrical System Analyzer with Integrated Printer, 6 and 12 Volt Batteries, 12 to 24 Volt System Testing, 100 to 2000 CCA

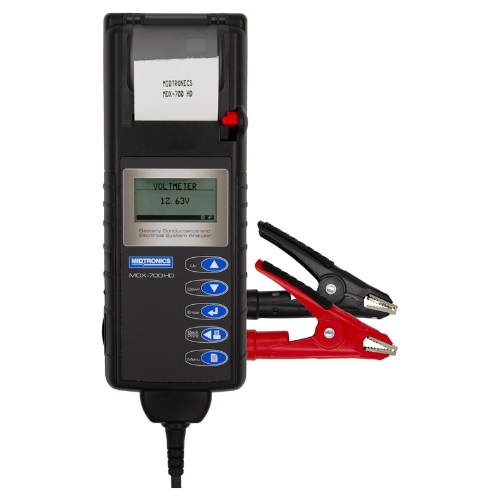

• Midtronics MDX-700P HD is a heavy duty battery and electrical system analyzer with an integrated printer for service on trucks and commercial equipment. It tests 6 and 12 volt batteries and evaluates 12 and 24 volt starting and charging systems. This is a diagnostic tool, not a replacement part.
• Features:
  • Integrated thermal printer delivers immediate, professional test records for customers and maintenance logs
  • Wide coverage from 100 to 2000 CCA across global rating systems for accurate assessment of commercial batteries
  • Supports regular flooded, AGM flat plate, AGM spiral, and gel chemistries to match common fleet batteries
  • Pack testing routine evaluates up to six connected batteries, then guides individual battery checks to isolate faults
  • Fifteen foot removable heavy duty cable set enables in-cab starting and charging tests for convenience and safety
  • Designed for heavy duty trucks and commercial equipment; used to test systems rather than replace a specific SKU
• Includes:
  • MDX-700P HD Battery Conductance and Electrical System Analyzer with integrated thermal printer
  • MDX-700HD software installed
  • Manual
  • Lead stud adapters, 2 male and 2 female
  • Fifteen foot battery test cable set
  • Tool bag
• Specifications:
  • Manufacturer: Midtronics
  • Part Number: MDX-700P HD
  • Product Type: Battery and electrical system analyzer with integrated printer
  • Battery Chemistries: Regular flooded, AGM flat plate, AGM spiral, gel
  • Rating Systems: CCA, CA, MCA, JIS, EN, DIN, SAE, IEC
  • Test Range: 100 to 2000 CCA
  • Voltage Range: 0.9 to 30 VDC
  • System Compatibility / Application: Tests 6 and 12 volt batteries and 12 and 24 volt starting and charging systems on heavy duty trucks and commercial equipment; supports battery pack testing up to six batteries; not a replacement part
  • Cable: Removable heavy duty cable set, 15 foot
  • Power: Uses the battery under test plus 6 AA internal batteries
  • Display: Five line text and graphical backlit display
  • Languages: English, Spanish, French Canadian
  • Dimensions: 270 mm x 100 mm x 50 mm
• The MDX-700P HD Battery and Electrical System Analyzer can also be referred to as heavy duty battery and electrical system analyzer, MDX-700P HD battery tester, truck battery tester with printer, 12 and 24 volt system tester, and AGM battery conductance tester.

Midtronics designs battery and electrical diagnostic equipment for professional service and fleet maintenance. The MDX-700P HD applies conductance technology and integrated printing to speed battery, starter, and charging system evaluations on heavy duty vehicles.

Q: Can the MDX-700P HD test vehicles with multiple batteries connected in a pack?
A: Yes. It can test up to six connected batteries as a pack and then guide individual battery testing to pinpoint a weak unit.

Q: Which rating systems and ranges are supported?
A: It supports CCA, CA, MCA, JIS, EN, DIN, SAE, and IEC, with a test range from 100 to 2000 CCA.

Q: Does the integrated printer require external power?
A: Printing is powered by the vehicle battery under test; ensure adequate battery voltage and paper are present before printing.
