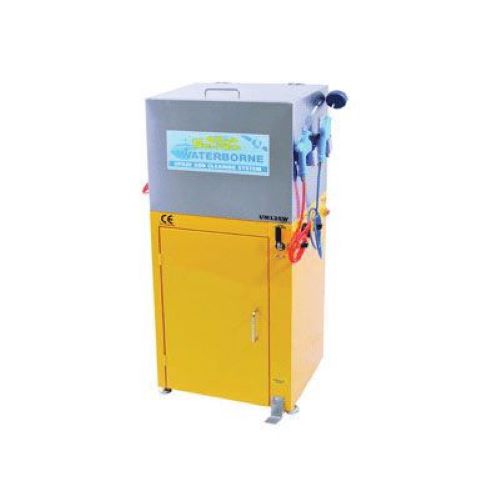

Uni-ram UM120W Waterborne Paint Spray Gun Cleaner

Uni-ram UM120W Waterborne Paint Spray Gun Cleaner

• The Uni-ram UM120W Waterborne Paint Spray Gun Cleaner is a powerful and eco-friendly solution for efficient manual cleaning of waterborne spray guns. Designed with three specialized cleaning tools, it ensures thorough and fast cleaning. The wash gun delivers high-pressure water, flushing the fluid passage in under 15 seconds, while the flow-through brush removes paint from the exterior, and the air gun provides quick drying. The cleaning efficiency is further enhanced by AQUA-KLEEN, Uni-ram's advanced waterborne cleaner, which improves paint breakdown and rinsing. With a sustainable “Green” approach, the UM120W allows water recovery and reuse, significantly reducing water consumption and disposal costs, making it an ideal choice for collision centers and automotive refinishing professionals.
• Features
  • Wash gun delivers high pressure clean water to flush the paint channel in under 10 seconds.

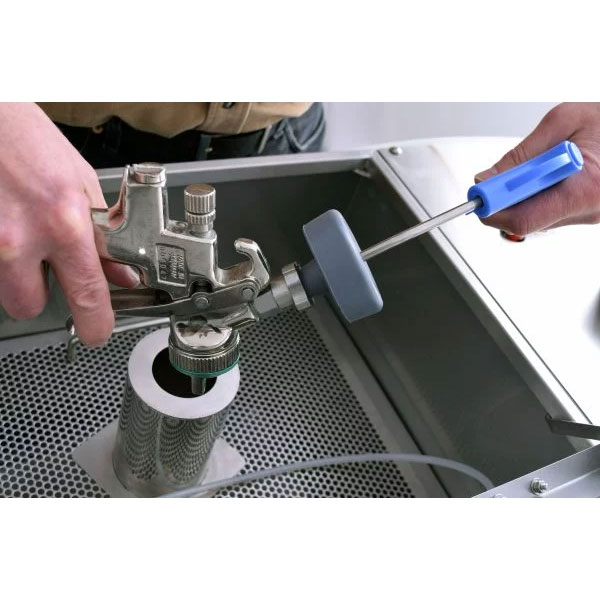

  • Flow-through brush removes overspray from the outside of the gun.
  • Both cleaning tools are activated by a foot pedal and powered by a 2″ diaphragm pump with a flow control.
  • Air gun dries the spray gun and a spray out verifies a clean paint channel.
  • Complete with 1 quart of California-friendly AQUA KLEEN PGC (102-8200) concentrate which enhances the cleaning power of water.
  • The “GREEN” Water Recovery System features filtering the used water after treatment with Uni-ram’s flocculating agent, COAGKLEEN Recovered, clean water may be reused multiple times, minimizing water consumption, or disposed of in accordance with local regulations.
  • One 2.2 lb container of COAG KLEEN flocculant powder (102- 8300) and 2 filters used in the “GREEN” Water Recovery System.
  • Compact size at 19” W X 22” D X 46” H
  • 72 lbs. / 33 KG to fit into a crowded mixing room.
  • Wash tank constructed from 304-grade stainless steel for longer life.
• Specifications
  • Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
  • Pump for water gun and brush: 2″ dual diaphragm pump with unique shuttle valve for long life, output is 1.9 gal/min (7 L/min).
  • Cleans waterborne paint from gravity spray guns with both disposable cup systems and conventional cup systems.
  • Shipping Dimensions: 22″w x 17″d x 45″h (56cm w x 43cm d x 114cm h)
  • Shipping Weight:  70 lb (32 kg).
  • Product Dimensions: 17.4″w x 13.6″d x 43.3″h (44cm w x 34.5cm d x 110.0cm h)
• Operation
  • The painter flushes the spray gun using the water gun into a supplied, stainless steel EPA 6H compliant spray capture tube, in under 10 seconds. Most painters get around 30 spray gun cleanings from the 5 gallons of clean, AQUA KLEEN PGC Cenriched water. The flow-through brush removes over spray and the blow gun dries the spray gun. Dirty water drains into a reservoir and is later treated with COAGKLEEN FP, then filtered for reuse.
